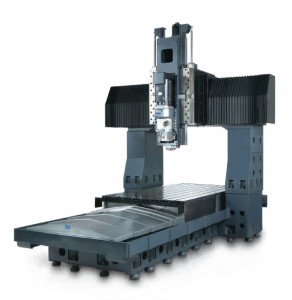

X Series Double Column CNC Machining Center

Introduction:

Flexible ODM Service: Custom sheet metal style and color as per your needs.

This is a high-rigidity gantry machining center that meets the extremely demanding metal processing conditions in today’s market and is suitable for various machining fields such as automotive, mold making, aerospace, military, and hardware.

Send email to us

Product Detail

Features

The main components of the machine tool are made of high-strength and high-quality cast iron, and the perfect heating treatment process is adopted to eliminate the residual stress, and sufficient reinforcement plates are arranged to ensure that the whole machine has sufficient strength, rigidity and high stability.

The X axis and Y axis adopt roller-type line rails, and smooth dynamic movement combined with the unique mechanical structure ensures the high-speed and high-precision characteristics of the machine.
The Z-axis adopts a hard rail design, which enhances the axial and radial rigidity during cutting, and improves the cutting ability of the spindle head.
The three-axis adopts pre-pull type C3 grade precision ball screw, which can adjust the thermal displacement caused by temperature rise, so as to ensure the accuracy of positioning accuracy and repeatability.
Adopt strict inspection specifications to verify the accuracy of each machine.

Technical Specifications

MODEL	UNIT	Grm-2013X	Grm-2015X	Grm-2518X	Grm-3020X	Grm-3022X	Grm-4025X	Grm-5032X	Grm-6032X	Grm-8036X
WORK Table						WORK Table
Table size	mm	2000x1200	2200×1300	2700x1600	3000x1700	3000×1800	4000×2100	5000×2800	6000×2800	8000×2800
Max. loading	kg	2000	4500	7000	7500	8000	9000	14000	16000	17000
T-slot(no. x size x pitch)	mm	22×150×7	22×150×7	22×200x7	22×250x7	22x200x8	22x200x10	22x250x11	22x250x11	22x280x10
Axis Travel						Axis Travel
X-axis Travel	mm	2000	2000	2500	3000	3000	4000	5000	6000	8000
Y-axis Travel	mm	1380	1500	1800	2200	2200	2500	3200	3200	3600
Z-axis Travel	mm	620	750	800	1100	1100	1200	1200	1200	1200
Distance Between Two Columns	mm	1320	1500	1800	2000	2200	2500	3200	3200	3600
Height from Worktable to Crossbeam	mm	970	1200	1250	1390	1400	1500	1500	1500	1500
Spindle nose to worktable surface	mm	180-800	210-960	180-980	180-1280	200-1300	200-1400	200-1400	200-1400	200-1400
Spindle center to column front	mm	380	450	450	495	495	495	495	495	495
Spindle						Spindle
Max. Spindle speed*	rpm	12000	6000	6000	6000	6000	6000	6000	6000	6000
Spindl motor(S2 30min/S1 cont.)*	kW	11/15	15/18.5	15/18.5	15/18.5	22/26	22/26	22/26	22/26	22/26
Spindle Torque(S2 30min/S1 cont.)*	Nm	47.7/95.5	143/236	143/236	143/236	140/286	140/286	140/286	140/286	140/286
Spindle Taper*	/	BT40	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50
Spindle Type	/	Direct Drive	Belt-Type			Belt-Type
Feed						Feed
X-axis Rapid feed rate	m/min	20	12	12	10	10	10	10	8	8
Y-axis Rapid feed rate	m/min	20	12	12	12	12	12	10	12	12
Z-axis Rapid feed rate	m/min	20	12	12	10	10	10	10	10	10
Cutting Feed Speed	mm/min	10000	8000	8000	6000	6000	6000	6000	6000	6000
ATC System						ATC System
Tool shank	set	24	24	24	24	24	24	24	24	24
Max. tool dia.(with adj. tool)	mm	80	112	112	112	112	112	112	112	112
Max. tool dia.(w/o adj. tool)	mm	150	200	200	200	200	200	200	200	200
Max. tool length	mm	300	350	350	350	350	350	350	350	350
Max. tool weight	kg	8	18	18	18	18	18	18	18	18
Tool Change Time(Tool to Tool)	sec	2.4	5	5	5	5	5	5	5	5
Accuracy(VDI3441, JISB6338)						Accuracy(VDI3441, JISB6338)
Positioning Accuracy	mm	P0.018(±0.005/300)		P0.025(±0.005/300)		P0.03(±0.005/300)		P0.04(±0.005/300)
Repeatability	mm	Ps0.015(±0.003)		Ps0.02(±0.003)		Ps0.02(±0.003)		Ps0.03(±0.003)
Others						Others
Power Requirement	Kva	30	50	50	50	50	50	50	50	50
Min. Air Pressure Requirement	kg/cm2	6	6	6	6	6	6	6	6	6
CuttingFluid Capacity	liter	320	400	400 400		400	400	400	400	400
Machine Footprint (LxW)	mm(Ca.)	4700x3700	5700×4500	6300x5100 7800×4200		8500x5600	11000x6000	13500x6700	14500x6700	17500x7100
Machine Height	mm(Ca.)	3600	4500	4500 4800		5700	5800	5800	5800	6000
Machine Weight	kg(Ca.)	14000	18000 21000 29000			30000	40000	50000	56000	73000
