VS Series Four-track Heavy Duty CNC Machining Center

Introduction:

Flexible ODM Service: Custom sheet metal style and color as per your needs.

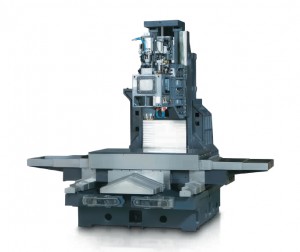

The core components of the machine tool include the base, saddle, worktable, column, spindle box, and automatic tool changer. These five key structures are made of high-strength, high-quality cast iron, and undergo thorough heat treatment to eliminate residual stress. They are also equipped with sufficient reinforcing ribs to ensure the overall strength, rigidity, and stability of the machine.

Send email to us

Product Detail

Features

It is specially designed for heavy-duty cutting. All series of models can be equipped with a two-stage spur gearbox structure to meet the needs of heavy-duty cutting.
The unique ultra-wide base with uniform distribution of mechanics improves the most stable support capacity of the workbench in the whole stroke.
The whole series is equipped with Y-axis four-track design, and the workbench does not hang, so as to ensure the dynamic accuracy of the machine.
The super-large span design of the joint surface between the base and the column ensures the stability of the machine during processing.
The thickened design of the column and the horizontal high-strength five layer casting structure can strengthen the rigidity of the structure and provide an excellent anti-seismic effect.

Technical Specifications

MODEL	Unit	Grm-1370VS	Grm-1580VS	Grm-1690VS	Grm-1890VS	Grm-2190VS
WORK TABLE
Table size	mm	1400x700	1600x800	1750x900	1900x900	2250x900
Max. loading	kg	1500	1700	1800	2000	2200
T-slot(no. xsizexpitch)	mm	18x125x5	18x125x5	22x150x5
AXIS TRAVEL
X-axis Travel	mm	1300	1500	1600	1800	2100
Y-axis Travel	mm	700	800	900
Z-axis Travel	mm	700	750	700
Spindle nose to work table surface	mm	150-850	120-870	160-860
Spindle center to column front	mm	700	820	920
SPINDLE
Max.Spindle speed*	rpm	6000	6000	6000
Spindl motor(S2 30min/S1 cont.)*	kW	15/18.5	15/18.5	15/18.5
Spindle Torque(S2 30min/S1 cont.)*	Nm	71.6/118	71.6/118	143/236
Spindle Taper*	/	BT50	BT50	BT50
Spindle Type	/	Belt-Type(direct-type,Gear Box Type are Optional)
FEED
X-axis Rapid feed rate	m/min	20	20	20
Y-axis Rapid feed rate	m/min	20	20	20
Z-axis Rapid feed rate	m/min	20	20	20
Cutting Feed Speed	mm/min	15000	15000	12000
ATC SYSTEM
Tool shank	set	24	24	24	24	24
Max. tool dia.(with adj.tool)	mm	112	112	112	112	112
Max. tool dia.(w/o adj.tool)	mm	200	200	200	200	200
Max. tool length	mm	350	350	350	350	350
Max. tool weight	kg	18	18	18	18	18
Tool Change Time(Tool to Tool)	sec	5	5	5	5	5
ACCURACY (VDI3441,JISB6338)
Positioning Accuracy	mm	P0.012(±0.005/300)		P0.015(±0.005/300)
Repeatability	mm	Ps0.01(±0.003)		Ps0.012(±0.003)
OTHERS
Power required	Kva	30	30	30
Min. Air Pressure Requirement	kg/cm²	6	6	6
Cutting Fluid Capacity	liter	350	350	400
Machine Footprint (LxW)	mm(Ca.)	4600x2800	5000x2900	5300x3400	5800x3400	6200x3400
Machine Height	mm(Ca.)	3050	3050	3350	3350	3350
Machine Weight	kg(Ca.)	10600	12000	15000	16500	17500
