VC Series High Rigidity CNC Machining Center with ODM service

Introduction:

Flexible ODM Service: Custom sheet metal style and color as per your needs.

High rigidity CNC machine for automotive, mold & precision metal processing.

Send email to us

Product Detail

Features

A high-rigidity model integrated with advanced manufacturing technology, it meets metal processing needs in multiple fields such as automotive, mold, aerospace, military, and hardware — a reliable choice for mechanical processing.

The machine adopts an integral layout: fixed base, saddle-driven worktable for X/Y-axis movement, and column-mounted spindle box for Z-axis feeding. Three-axis linkage ensures stable processing. Core components are made of high-strength, high-quality cast iron, subjected to full-process heat treatment to eliminate residual stress, and equipped with reinforcing ribs, guaranteeing the machine's high strength, rigidity, and stability.

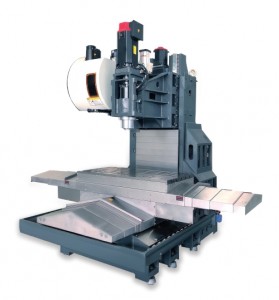

Key structural advantages:

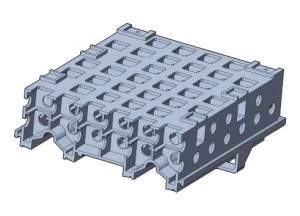

Base characteristics: The base adopts a double-layer honeycomb structure, which provides strong supporting force and shock- absorbing ability.

Lightweight saddle: Facilitates high-speed and high-precision operation.

Durable worktable: 6-slider design enhances load-bearing capacity.

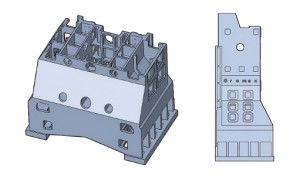

Column characteristics: The column is extra wide and thick with multi-layer structure. It enhances the rigidity of cutting and maintains the stability of precision for a long time.

Optimized spindle box: Flexible compatibility with different spindles to meet diverse needs.

24T shoulder-mounted tool magazine: Fast tool change speed for improved processing efficiency.

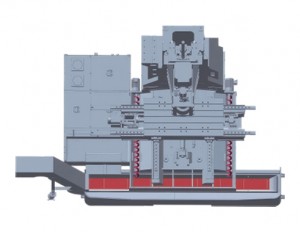

Chip removal system: Two spiral chip conveyors are installed on the side, and a set of track-type chip conveyors is installed in the front for efficient chip removal.

Customizable options: Sheet metal style and color can be tailored to customer requirements.

Technical Specifications

MODEL	UNIT	Grm-855VC	Grm-1160VC	Grm-1360VC
WORK TABLE
Table size	mm	1000×550	1200×600	1400×600
T-slot (no. x size x pitch)	mm	5×18 mm x100 mm
Max. loading	kg	600	1000	1200
TRAVEL
X-axis	mm	800	1100	1300
Y-axis	mm	550	610	610
Z-axis	mm	550	610	610
Spindle nose to work table surface	mm	120~670	120~730	120~730
Spindle center to column front	mm	590	650	650
SPINDLE
Spindle motor(S3 15%/S2 15min/S1 cont.)	kw	18.5/ 15/ 11
Max.Spindle speed	rpm	Direct-type: 12000
Spindle taper	/	7/24 No.40
Pull stud	/	MAS 403 P40T-1
Spindle diameter	mm	Ø70
FEED
Rapid feed rate(X/Y/Z)	m/min	36	30	30
Cutting feed rate	mm/min	1~15000
ACCURACY(VDI3341)
Positioning accuracy	/	P0.01
Repeatability	/	Ps0.008
ATC SYSTEM
Tool shank	/	BT40
Tool capacity	T	Arm type 24 T
Tool exchange time	sec	Arm T-T 2.4s, C-C 3.8s
Max. tool diameter(with adj.tool)	mm	80 mm(3.15")
Max. tool diameter(w/o adj.tool)	mm	125
Max. tool length	mm	300
Max. tool weight	kg	8
OTHER
Power required	kVA	25
Air pressure required	/	6kg/cm2, 300 L/mint
Machine occupied area(WxDxH)	mm	3390×3126×2790	4000×3326×2900	4200×3326×2900
Machine weight	kg	5500	6800	8800
(Both specifications & design characteristics are subject to change without prior notice.)
