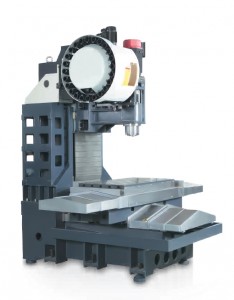

V Series CNC Machining Center with High Rigidity

Introduction:

Flexible ODM Service: Custom sheet metal style and color as per your needs.

The V-series vertical machining centers are designed for high-efficiency machining needs and are widely used in the mass production of spare parts and the production of various precision molds.

Send email to us

Product Detail

Features

Specially designed for high-precision and high-efficiency machining. While ensuring high strength, all moving parts are as lightweight as possible, providing the basis for high-speed and high-precision performance.

The structural parts of the bed adopt a honeycomb structure, and sufficient reinforcement ribs are arranged to ensure that the whole machine has sufficient strength and rigidity.

The whole series of X-axis tables adopts 6-slider design, which improves the load-bearing capacity of the table and prolongs the service life of the machine.

The horizontal and vertical dimensions of the spindle head adopt a golden ratio structure of 1:1.1, with a design of 6 sliders, which greatly improves the cutting ability and processing stability.

Unique shoulder-mounted tool magazine installation method, standard configuration of 24 tool arm type magazine, to meet processing needs.

Technical Specifications

MODEL	UNIT	Grm-650V	Grm-855VC	Grm-1160VC	Grm-1165V	Grm-1370V
WORK TABLE
Table size	mm	760X450	1000x550	1200X600	1240X610	1400X700
Max. loading	kg	500	600	1000	1000	1100
T-slot(no. x size x pitch)	mm	18x100x4	18x100x5	18x100x5	18x125x5	18x125x5
AXIS TRAVEL
X-axis Travel	mm	650	800	1100	1100	1300
Y-axis Travel	mm	450	550	610	650	700
Z-axis Travel	mm	450	550	610	650	650
Spindle nose to work table surface	mm	150-600	120-670	120-730	120-770	120-770
Spindle center to column front	mm	500	590	650	670	720
SPINDLE
Max.Spindle speed*	rpm	12000	12000	12000	12000	12000
Spindl Motor(S2 30min/S1 cont.)*	kW	7.5/11	11/15	11/15	11/15	11/15
Spindle Torque(S2 30min/S1 cont.)*	Nm	35.8/70	47.7/95.5	47.7/95.5	47.7/95.5	47.7/95.5
Spindle Taper*	/	BT40
Spindle Type	/	direct-type
FEED
X-axis Rapid feed rate	m/min	48	36	30	30	30
Y-axis Rapid feed rate	m/min	48	36	30	30	30
Z-axis Rapid feed rate	m/min	48	36	30	30	30
Cutting Feed Speed	mm/min	15000	15000	12000	12000	12000
ATC SYSTEM
Tool shank	set	24	24	24	24	24
Max. tool diameter(with adj.tool)	mm	80	80	80	80	80
Max. tool diameter(w/o adj.tool)	mm	150	150	150	150	150
Max. tool length	mm	300	300	300	300	300
Max. tool weight	kg	8	8	8	8	8
Tool Change Time(Tool to Tool)	sec	2.4	2.4	2.4	2.4	2.4
ACCURACY(VDI3441,JISB6338)
Positioning Accuracy	mm	P0.01(±0.004/300)		P0.012(±0.004/300)
Repeatability	mm	Ps0.008(±0.003)		Ps0.01(±0.003)
OTHERS
Power required	Kva	15	20	25	25	25
Min. Air Pressure Requirement	kg/cm2	5.5	6	6	6	6
Cutting Fluid Capacity	liter	250	250	300	300	350
Machine Footprint(LxW)	mm(Ca.)	2000x2200	2400x2350	2700×2400	2900x2600	3200x2700
Machine Height	mm(Ca.)	2600	2750	2750	2830	2850
Machine Weight	kg(Ca.)	4600	5200	6800	7200	8200
