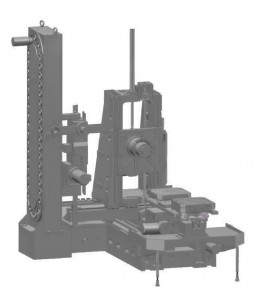

HT Series Horizontal Moving Column Linear Guideway Machining Center

Introduction:

Flexible ODM Service: Custom sheet metal style and color as per your needs.

Boasting stress-relieved Meehanite castings, upright T-shaped moving column & curvic coupling turntable, the machine delivers superior rigidity and long-term precision—validated via strict inspections.

Send email to us

Product Detail

Features

All the main parts are made of Meehanite castings, and have undergone stress relief and aging treatment to ensure the stability of the machine precision.
It adopts upright T-shaped moving column structure and large span design to provide better cutting ability.
The overall base structure, reasonable reinforcement optimization improve the rigidity and earthquake resistance of the overall structure.
The standard configuration of the turntable is an indexing workbench positioned by a curvic coupling (0.001°x360), which has high positioning accuracy and a long period of accuracy maintenance.
Adopt strict inspection specifications to verify the accuracy of each machine.

Technical Specifications

MODEL	UNIT	Grm-500HT-D	Grm-630HT-D	Grm-800HT-D
WORK TABLE
Table size	mm	550×550	630×630	800×800
Max. loading	kg	500*2	1000*2	1800*2
Number of Tapping Holeson the Tray table	pcS	24-M16	24-M16	30-M16
Min. Rotation Angle	deg.	0.001	0.001	0.001
Division Accuracy	sec.	±6	±6	±6
Repeat Accuracy	sec.	±4	±4	±4
AXIS TRAVEL
X-Axis Travel	mm	650	1050	1400
Y-Axis Travel	mm	650	900	1000
Z-Axis Travel	mm	760	900	1200
Spindle Face to work table Center	mm	150-910	150-1050	150-1150
Spindlenose to work table surface	mm	140-790	30-930	75-1075
SPINDLE
Max. Spindle speed*	rpm	6000	6000	6000
Spindl motor(S2 30min/S1 cont.)*	kW	11/15	15/18.5	22/26
Spindle Torque(S2 30min/S1 cont.)*	Nm	47.7/95.5	143/236	140/286
Spindle Taper*	/	BT50	BT50	BT50
Spindle Type	/	Belt-Type
FEED
X-axis Rapid Traverse	m/min	30	20	20
Y-axis Rapid Traverse	m/min	30	20	20
Z-axis Rapid Traverse	m/min	30	20	20
Cutting Feed Speed	mm/min	12000	12000	12000
ATC SYSTEM
Tool shank	set	24	24	24
Max. tool dia.(with adj.tool)	mm	112	112	112
Max. tool dia.(w/oadj.tool)	mm	200	200	200
Max. tool length	mm	350	350	350
Max. tool weight	kg	18	18	18
Tool Change Time(Tool to Tool)	sec	6	6	6
ACCURACY(VDI3441,JISB6338)
Positioning Accuracy	mm	P0.015(±0.005/300)
Repeatability	mm	P0.010(±0.003)
OTHERS
Power Requirement	Kva	40	50	50
Min. Air Pressure Requirement	kg/cm²	6	6	6
Cutting Fluid Capacity	liter	350	400	400
Machine Footprint (LxW)	mm(Ca.)	5100×3100	6500×3600	7000×3900
Machine Height	mm(Ca.)	3100	3800	4200
Machine Weight	kg(Ca.)	11000	16000	24000
