HP Series Horizontal Moving Column Linear Guideway Machining Center

Introduction:

Flexible ODM Service: Custom sheet metal style and color as per your needs.

The HP series, designed for heavy-duty cutting in machinery/mold/die blank manufacturing, delivers superior cutting power for precision/semi-precision machining, combines milling/drilling/boring/tapping, and cuts costs while boosting efficiency.

Send email to us

Product Detail

Features

The HP series machine tools are designed and developed specifically for the heavy-duty cutting needs of industries such as machinery manufacturing, mold making, and die blank manufacturing. They possess superior cutting capabilities and are widely applicable to precision and semi-precision machining in the mold and machinery manufacturing fields. These machine tools integrate multiple machining modes, including milling, drilling, boring, and tapping, effectively reducing manufacturing costs and significantly improving production efficiency.
It adopts upright T-shaped moving column structure and large span design to provide better cutting ability.
The overall base structure, reasonable reinforcement optimization improve the rigidity and earthquake resistance of the overall structure.
The standard configuration of the turntable is an indexing workbench positioned by a curvic coupling (1°x360), which has high positioning accuracy and a long period of accuracy maintenance.
Adopt strict inspection specifications to verify the accuracy of each machine.
All the main parts are made of Meehanite castings, and have undergone stress relief and aging treatment to ensure the stability of the machine precision.

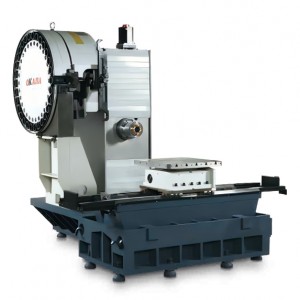

Horizontal Moving Column Linear Guideway Machining Center

Technical Specifications

MODEL	UNIT	Grm-500HP	Grm-630HP	Grm-800HP	Grm-1000HP-D	Grm-1250HP-D	Grm-1600HP-D
WORK TABLE
Table size	mm	500×500	630×630	800×800	1000×1000	1250×1250	1600×1600
Max. loading	kg	500	950	1500	3000×2	4000×2	6000×2
Number of Tapping Holes on the Tray Table	mm	18×100×5	18×100×5	22×160×5	22×170×5	22×200×5	22×200×7
Min. Rotation Angle	deg.	1	1	1	0	0	0
Division Accuracy	sec.	±6	±6	±6	±6	±6	±6
Repeat Accuracy	sec.	±4	±4	±4	±4	±4	±4
AXIS TRAVEL
X-Axis Travel	mm	700	1050	1600	2000	2000	2500
Y-Axis Travel	mm	500	750	1000	1300	1300	1300
Z-Axis Travel	mm	500	840	1000	1300	1300	1600
Spindle face to worktable Center	mm	150-650	180-1020	120-1120	250-1550	370-1670	450-2050
Spindle nose to worktable surface	mm	50-550	120-870	200-1200	50-1350	50-1350	50-1350
SPINDLE
Max. Spindle speed*	rpm	8000	6000	6000	6000	6000	6000
Spindl Motor(S2 30min/S1 cont.)*	kW	11/15	15/18.5	15/18.5	15/18.5	15/18.5	22/26
Spindle Torque(S2 30min/S1 cont.)*	Nm	52/95.5	143/236	143/236	143/236	143/236	140/286
Spindle Taper*	/	BT40	BT50	BT50	BT50	BT50	BT50
Spindle Type	/	Belt-Type			Belt-Type
FEED
X-axis Rapid Traverse	m/min	30	20	20	15	15	15
Y-axis Rapid Traverse	m/min	30	20	20	15	15	15
Z-axis Rapid Traverse	m/min	30	20	20	15	15	15
Cutting Feed Speed	mm/min	12000	12000	12000	10000	10000	10000
ATC SYSTEM
Tool shank	set	24	30	30	24	24	24
Max. tool dia.(with adj.tool)	mm	80	112	112	112	112	112
Max. tool dia.(w/o adj.tool)	mm	150	200	200	200	200	200
Max. tool length	mm	300	350	350	350	350	350
Max. tool weight	kg	8	18	18	18	18	18
Tool Change Time(Tool to Tool)	sec	3	6	6	6	6	6
ACCURACY(VDI3441,JISB6338)
Positioning Accuracy	mm	P0.015(±0.005/300)			P0.02(±0.005/300)
Repeatability	mm	P0.010(±0.003)			Ps0.15(±0.003)
OTHERS
Power Requirement	Kva	30	30	30	50	50	50
Min. Air Pressure Requirement	kg/cm²	6	6	6	6	6	6
Cutting Fluid Capacity	liter	300	350	400	400	400	400
Machine Footprint (LxW)	mm(Ca.)	3500×2500	5600×3600	5800×5000	10000×5800	11000×6200	12000×7000
Machine Height	mm(Ca.)	2500	3150	4200	4200	4200	4400
Machine Weight	kg(Ca.)	5000	10000	19000	25000	30000	35000
