5-Axis Vertical Machining Center TK Series
Product Video
Features
1.Excellent processing effect

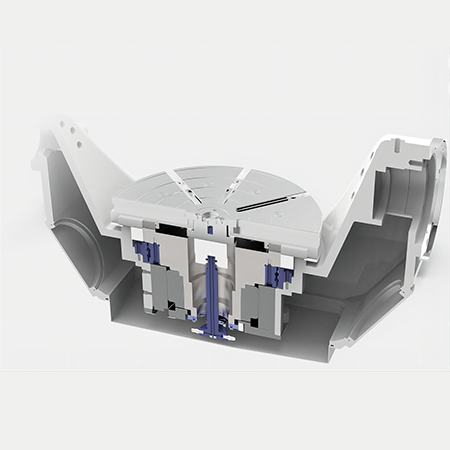

The integral casting bed + moving beam Y axis + high rigidity cradle constitute a new generation of high-end five-axis machine tools. The five-axis CNC machining center achieves maximum milling efficiency efficiency, highest processing performance and extreme precision, while being extremely rigid and stable. Such powerful performance comes from its highly stable body and meticulous FEM analysis.
2.High rigdity and accuracy
3.High dynamic performance
4.Unparalleled stability and continuous accuracy
The overall casting bed has unparalleled stability; the moving beam Y-axis + high-rigidity cradle makes the machine have extraordinary turning rigidity; the weight of the moving parts of the fuselage is optimized to achieve 5 axis cnc vertical machining center extremely high dynamic performance.

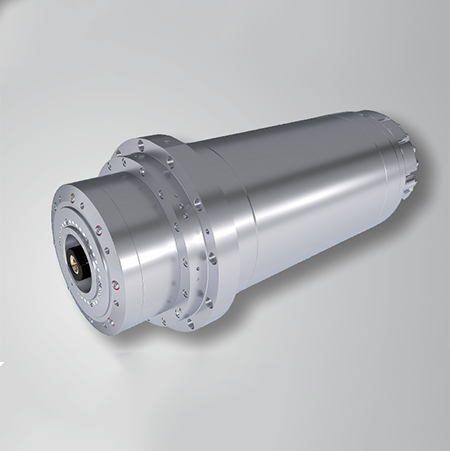

5.Independently developed composite spindle, high efficiency and easy operation
6.CNC intelligent development technology
Years of industry five-axis application technology precipitation has independent control of mechatronics, making machine tools more stable and developing industry-leading functions
7.Milling/turning combined processing technology achieves complete processing
Perform complete machining on a single machine tool, including milling and turning , with only one clamping required , equipped with direct drive technology, and a maximum speed of 2000rpm/ min. The processing speed is fast and the logistics cost is low, which is due to the lack of auxiliary time and additional operations, resulting in low single piece production costs and high processing accuracy.
Technical Specifications
|
Item |
TK10 |
|
|
Linear sxis parameters |
X/Y/Z-axis travel range(mm) |
130/100/130 |
|
|
X/Y/Z positioning precision seat (mm) |
0.008 |
|
|
X/Y/Z repeat positioning accuracy (mm) |
0.005 |
|
|
X/Y/Z-axis rapid traverse speed (m/min) |
15 |
|
|
X/Y/Z-axis max cutting speed (m/min) |
10 |
|
Rotary axis parametes |
B-axis travel range |
+20°-125° |
|
|
C-axis travel range |
n×360° |
|
|
B/C positioning accuracy |
8’’ |
|
|
B/C repeated positioning accuracy |
5’’ |
|
|
B-axis rapid traverse speed (rpm/min) |
50 |
|
|
C-axis rapid traverse speed (rpm/min) |
100 |
|
Machine parameters |
Machine tool height (mm) |
2000 |
|
|
Footprint (mm) |
1000*1200 |
|
|
Machine net (T) |
0.9T |
|
Worktable parameters |
Worktable size (mm) |
Ø100 |
|
|
Max. workpiece size (mm) |
Ø100*100 |
|
|
Max. workpiece weight (kg) |
10 |
|
|
Spindle end face to table distance(mm) |
90-220 |
|
Tool magazine parameters |
Tool magazine capacity |
20 |
|
|
T-T tool changetime (s) |
3 |
|
|
Max. tool length(mm) |
60 |
|
|
Max. tool diameter(mm) |
Ø20 |
|
|
Max. tool weight (kg) |
0.5 |
Technical Specifications
|
Item |
TK35 |
TK50 |
TK65 |
TK80 |
|
|
Linear sxis parameters |
X/Y/Z-axis travel range(mm) |
380/420/365 |
520/520/460 |
650/620/520 |
800/800/550 |
|
X/Y/Z positioning precision seat(mm) |
0.004 |
0.004 |
0.005 |
0.005 |
|
|
X/Y/Z repeat positioning accuracy(mm) |
0.003 |
0.003 |
0.004 |
0.004 |
|
|
X/Y/Z-axis rapid traverse speed(m/min) |
30 |
30 |
30 |
30 |
|
|
X/Y/Z-axis max. Cutting speed(m/min) |
15 |
15 |
15 |
15 |
|
|
Rotary axis parametes |
A-axis travel range |
±120° |
±120° |
±120° |
±120° |
|
C-axis travel range |
n×360° |
n×360° |
n×360° |
n×360° |
|
|
A/C positioning accuracy |
8’’ |
8’’ |
8’’ |
8’’ |
|
|
A/C repeated positioning accuracy |
5’’ |
5’’ |
5’’ |
5’’ |
|
|
A-axis rapid traverse speed(rpm/min) |
50 |
30 |
30 |
30 |
|
|
C-axis rapid traverse speed(rpm/min) |
100 |
80 |
100 |
50 |
|
|
Machine parameters |
Machine tool height(mm) |
2300 |
2800 |
3300 |
3060 |
|
Footprint(mm) |
1800*3200 |
3600*3220 |
2480*4390 |
4530*2630 |
|
|
Machine net(T) |
6 |
10 |
11 |
18.5 |
|
|
Worktable parameters |
Worktable size(mm) |
Ø350 |
Ø500 |
Ø500 |
Ø700 |
|
T-slot |
6-M10 |
8-M16 |
8-M16 |
8-M18 |
|
|
Max.workpiece size(mm) |
Ø350*250 |
Ø520*410 |
Ø650*410 |
Ø800*500 |
|
|
Max.workpiece weight(kg) |
100 |
400 |
500 |
500 |
|
|
Spindle end face to table distance(mm) |
110-475 |
170-630 |
170-690 |
180-730 |
|
|
Tool magazine parameters |
Tool magazine capacity |
24 |
24 |
24 |
24 |
|
T-T tool changetime(s) |
3 |
3 |
3 |
3 |
|
|
Max.tool length(mm) |
200 |
320 |
320 |
320 |
|
|
Max. diameter of adjacent positions without tools(mm) |
Ø110 |
Ø140 |
Ø140 |
Ø140 |
|
|
Max. diameter of adjacent cutting tools(mm) |
Ø65 |
Ø80 |
Ø80 |
Ø80 |
|
|
Max.tool weight(kg) |
6 |
6 |
6 |
6 |
|
Technical Specifications
|
Item |
TK20 |
TK1000 |
|
|
Linear sxis parameters
|
X/Y/Z-axis travel range(mm) |
250/250/250 |
1100/1100/700 |
|
X/Y/Z positioning precision seat(mm) |
0.008 |
0.006 |
|
|
X/Y/Z repeat positioning accuracy(mm) |
0.005 |
0.005 |
|
|
X/Y/Z-axis rapid traverse speed(m/min) |
15 |
30 |
|
|
X/Y/Z-axis max. Cutting speed(m/min) |
10 |
15 |
|
|
Rotary axis parametes
|
A-axis travel range |
±125° |
±120° |
|
C-axis travel range |
n×360° |
n×360° |
|
|
A/C positioning accuracy |
8’’ |
8’’ |
|
|
A/C repeated positioning accuracy |
5’’ |
5’’ |
|
|
A-axis rapid traverse speed(rpm/min) |
50 |
30 |
|
|
C-axis rapid traverse speed(rpm/min) |
100 |
100 |
|
|
Machine parameters
|
Machine tool height(mm) |
2010 |
4000 |
|
Footprint(mm) |
1750*1290 |
3200*4200 |
|
|
Machine net(T) |
2.3 |
25 |
|
|
Worktable parameters
|
Worktable size(mm) |
Ø200 |
Ø800 |
|
T-slot |
|
M18T type straight slot |
|
|
Max.workpiece size(mm) |
Ø200*200 |
Ø1100*700 |
|
|
Max.workpiece weight(kg) |
30 |
2500 |
|
|
Spindle end face to table distance(mm) |
60-310 |
|
|
|
Tool magazine parameters
|
Tool magazine capacity |
16 |
40 |
|
T-T tool changetime(s) |
3 |
4 |
|
|
Max.tool length(mm) |
125 |
450 |
|
|
Max.tool diameter(mm) |
40 |
Ø200 |
|
|
Max.tool weight(kg) |
1 |
20 |
|
Processing Example
1.New Energy
2.Medical Equipment
3.Ship Industry
4.Mold Industry
5.Machinery Manufacturing
6.Aerospace
