5-Axis Horizontal Machining Center A Series
Product Video
Product Configuration
Features
Performance Advantages

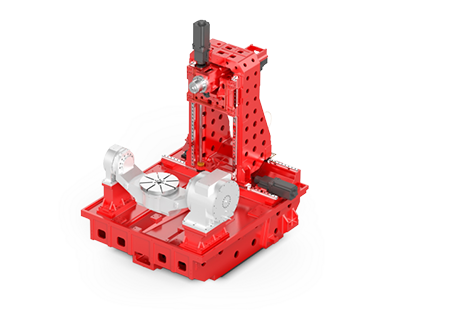

1. Completed machine adopts a moving column structure, the tool moves in three axes, and the workpiece rotates in two axes, which can realize five-axis simultaneous
2. Lightweight design, linear axis 90M/min fast displacement. Acceleration 0.8G
3. A-axis and axis both adopt direct drive structure, zero transmission chain, zero reverse clearance, good rigidity; high-precision angle encoder realizes precise positioning
4. The bed is T-shaped, the X-axis is arranged in a stepped guide rail, the moving parts are light, and the force condition is good:
5. 5-xis CNC horizontal machining center spindle adopts a high-speed electric spindle, fast speed, low noise: 6 three linear axis roller guide rails. Low friction, high rigidity;
Suitable model A5 A8 A13
Performance Advantages
1. Lightweight design, direct drive motor application, the highest rapid displacement can reach
120m/min, the fastest speed is 1Gh;
2. Horizontal machine tools have better openness than gantry machine tools, easy maintenance, convenient loading, smooth chip removal and other structural advantages:
3. Horizontal dual five-axis machining center, independent left and right three-coordinate units are distributed at both ends of the fixture, without the risk of interference and collision, can maximize the simultaneous processing of two sides and improve processing efficiency:
4. Controlled by a set of CNC system, simple programming, high flexibility, and can adapt to the processing of multiple types of parts by replacing the fixture:

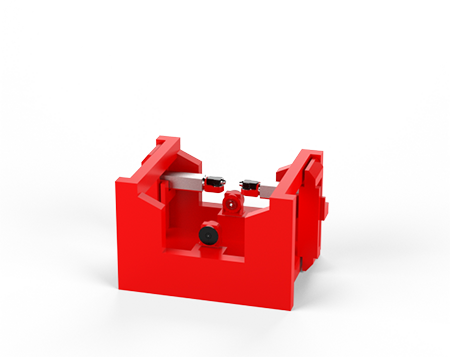

5. With A-axis (cradle) turntable, it is used for the transformation of the processing posture of the front and back sides of the parts. At the same time, the A-axis turntable can easily realize the cleaning and reversing of the fixture positioning surface, without the trouble of chip collection, and it is easy to ensure the reliability of automation
6. The large inclination angle structural design, combined with the horizontal CNC machining center's dead angle spray, enables the machine tool to achieve the best chip removal effect
Suitable model A15L A20L
Performance Advantages

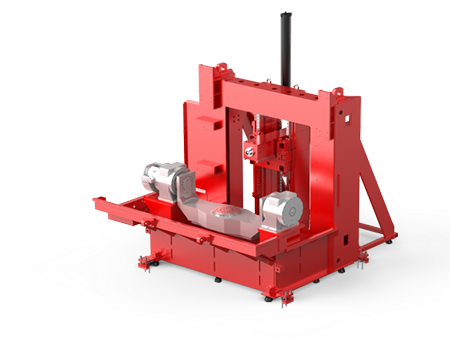

1. The whole machine adopts a horizontal double five-axis cradle structure:
2. Good rigidity
Suitable model A25L

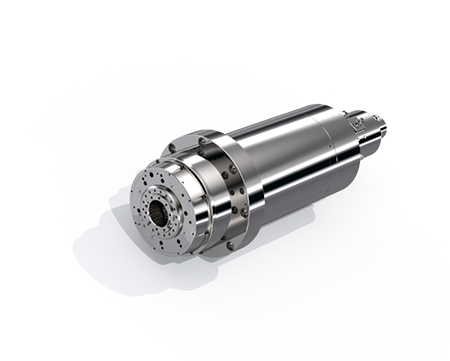

Master Core Technology, Independent R & D Spindle
CATO masters core technology, has the capability of spindle design, manufacturing and assembly, has a constant temperature workshop of 1000m2 , adopts modular lean production mode. CATO spindle has high rigidity, high speed, high power, high torque and high. Reliability and other characteristics.
The self-developed HSK E40/HSK A63/HSK A100 built-in spindle.
Eliminates jitter and vibration in the range of spindle rotation, and achieves stable accuracy in high-speed long-time machining. CNC horizontal machine center spindle uses forced cooling to cool the motor and front and rear bearings.
Built in motor structure
By eliminating the driving gear, the high-speed rotation can be minimizedIt can improve the accuracy of machining surface and prolong the life of cutter

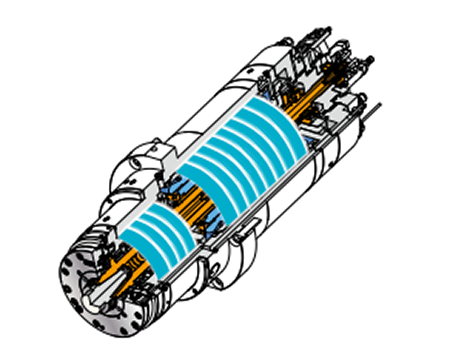

Spindle temperature management
By circulating the temperature managed cooling oil, The thermal displacement of the spindle caused by heating can prevent the change of horizontal cnc mill machining accuracy.

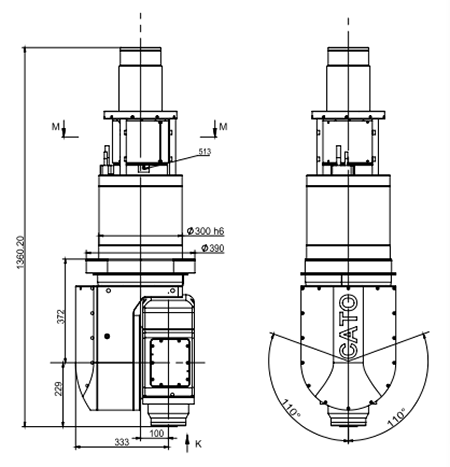

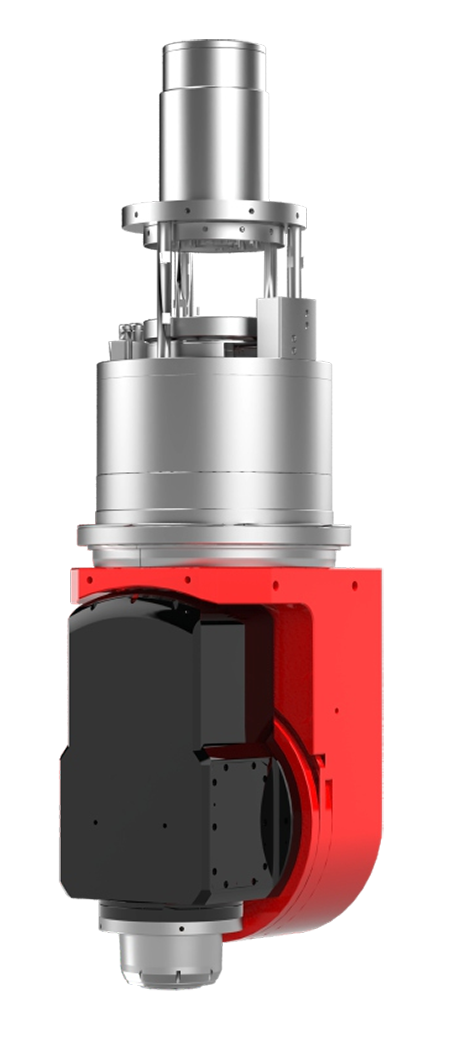

High speed simultaneous two axis milling head
Technical Specifications
|
Project |
Unit |
A13 |
A13+a |
A13+b |
|
|
Travel |
X/Y/Z axis travel |
mm |
1300/850/650 |
1300/850/650 |
1300/850/650 |
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
-10-840 |
±425 |
\ |
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
120-770 |
230-880 |
\ |
|
|
Distance from B axis disk to A axis rotation center |
mm |
60 |
\ |
\ |
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
\ |
\ |
160-1010 |
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
\ |
\ |
120-770 |
|
|
Maximum rotation diameter of B axis |
mm |
1400 |
\ |
1600 |
|
|
Maximum rotation diameter of A axis |
mm |
1450 |
1200 |
\ |
|
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
190/Built-in |
190/Built-in |
190/Built-in |
|
Spindle taper |
mm |
A63 |
A63 |
A63 |
|
|
Spindle maximum speed |
r/min |
16000 |
16000 |
16000 |
|
|
Spindle motor rated power |
kW |
30KW |
30KW |
30KW |
|
|
Spindle rated torque |
N.m |
72 |
72 |
72 |
|
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
90/90/90 |
90/90/90 |
90/90/90 |
|
Axial acceleration |
m/S² |
8/8/8 |
8/8/8 |
8/8/8 |
|
|
Positioning accuracy |
mm |
0.015/0.008/0.008 |
0.015/0.008/0.008 |
0.015/0.008/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.012/0.006/0.006 |
0.012/0.006/0.006 |
0.012/0.006/0.006 |
|
|
Turntable |
Disk diameter |
mm |
420 positioning plate |
\ |
600*600 |
|
Allowable load |
kg |
1000 |
1000 |
1000 |
|
|
A-axis travel |
° |
+90°~-180° |
360° |
\ |
|
|
B-axis travel |
0 |
360° |
\ |
360° |
|
|
A-axis maximum speed |
rpm |
40 |
40 |
\ |
|
|
B-axis maximum speed |
rpm |
40 |
\ |
40 |
|
|
A positioning accuracy/repeat positioning accuracy |
arc.sec |
10/6 |
10/6 |
\ |
|
|
B positioning accuracy/repeat positioning accuracy |
arc.sec |
8/4 |
\ |
8/4 |
|
|
Tool magazine |
Tool magazine capacity |
T |
41T |
41T |
41T |
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/empty tool) |
mm |
80/125 |
80/125 |
80/125 |
|
|
Maximum tool length |
mm |
390 |
390 |
390 |
|
|
Maximum tool weight |
kg |
8 |
8 |
8 |
|
|
Project |
Unit |
A15L |
A15L+a |
A15L+b |
|
|
Travel |
X/Y/Z axis travel |
mm |
1500/1000/650 |
1500/1000/650 |
1500/1000/650 |
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
-250～750 |
±500 |
\ |
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
350-1000 |
300-950 |
\ |
|
|
Distance from B axis disk to A axis rotation center |
mm |
150 |
\ |
\ |
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
\ |
\ |
200-1200 |
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
\ |
\ |
300-950 |
|
|
Maximum rotation diameter of B axis |
mm |
1800 |
\ |
1700 |
|
|
Maximum rotation diameter of A axis |
mm |
1960 |
1500 |
\ |
|
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
210/Built-in |
210/Built-in |
210/Built-in |
|
Spindle taper |
mm |
A100 |
A100 |
A100 |
|
|
Spindle maximum speed |
r/min |
8000 |
8000 |
8000 |
|
|
Spindle motor rated power |
kW |
31.4KW |
31.4KW |
31.4KW |
|
|
Spindle rated torque |
N.m |
150 |
150 |
150 |
|
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
100/100/100 |
100/100/100 |
100/100/100 |
|
Axial acceleration |
m/S² |
10/10/10 |
10/10/10 |
10/10/10 |
|
|
Positioning accuracy |
mm |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
|
|
Turntable |
Disk diameter |
mm |
420 positioning plate |
\ |
800*800 |
|
Allowable load |
kg |
1500 |
1500 |
1500 |
|
|
A-axis travel |
° |
+90°~-180° |
360° |
\ |
|
|
B-axis travel |
0 |
360° |
\ |
360° |
|
|
A-axis maximum speed |
rpm |
40 |
40 |
\ |
|
|
B-axis maximum speed |
rpm |
40 |
\ |
40 |
|
|
A positioning accuracy/repeat positioning accuracy |
arc.sec |
10/6 |
10/6 |
\ |
|
|
B positioning accuracy/repeat positioning accuracy |
arc.sec |
8/4 |
\ |
8/4 |
|
|
Tool magazine |
Tool magazine capacity |
T |
72T |
72T |
72T |
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/empty tool) |
mm |
110/300 |
110/300 |
110/300 |
|
|
Maximum tool length |
mm |
550 |
550 |
550 |
|
|
Maximum tool weight |
kg |
20 |
20 |
20 |
|
Technical Specifications
|
Project |
Unit |
A20L |
A20L+a |
A20L+b |
|
|
Travel |
X/Y/Z axis travel |
mm |
2000/1500/85C |
2000/1500/850 |
2000/1500/850 |
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
-750~750 |
±750 |
\ |
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
150-1000 |
150-1000 |
\ |
|
|
Distance from B axis disk to A axis rotation center |
mm |
\ |
\ |
\ |
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
\ |
\ |
200-1700 |
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
\ |
\ |
200-1200 |
|
|
Maximum rotation diameter of B axis |
mm |
\ |
\ |
\ |
|
|
Maximum rotation diameter of A axis |
mm |
\ |
1800 |
\ |
|
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
210/Built-in |
210/Built-in |
210/Built-in |
|
Spindle taper |
mm |
A100 |
A100 |
A100 |
|
|
Spindle maximum speed |
r/min |
8000 |
8000 |
8000 |
|
|
Spindle motor rated power |
kW |
31.4 |
31.4 |
31.4 |
|
|
Spindle rated torque |
N.m |
150 |
150 |
150 |
|
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
100/100/100 |
100/100/100 |
100/100/100 |
|
Axial acceleration |
m/S² |
10/10/10 |
10/10/10 |
10/10/10 |
|
|
Positioning accuracy |
mm |
0.012/0.01/0.008 |
0.012/0.01/0.008 |
0.012/0.01/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
|
|
Five-axis head |
B-axis travel (five-axis head) |
° |
\ |
\ |
\ |
|
C-axis travel (five-axis head) |
° |
\ |
\ |
\ |
|
|
B-axis maximum speed (five-axis head) |
rpm |
\ |
\ |
\ |
|
|
C-axis maximum speed (five-axis head) |
rpm |
\ |
\ |
\ |
|
|
Five-axis head positioning accuracy B/C |
arc.sec |
\ |
\ |
\ |
|
|
Five-axis head repeatability |
arc.sec |
\ |
\ |
\ |
|
|
Turntable |
Disk diameter |
mm |
420 positioning plate |
\ |
\ |
|
Allowable load |
kg |
2000 |
2000 |
2000 |
|
|
A-axis travel |
° |
90～-180 |
360° |
\ |
|
|
B-axis travel |
0 |
360° |
\ |
360° |
|
|
A-axis maximum speed |
rpm |
40 |
40 |
\ |
|
|
B-axis maximum speed |
rpm |
40 |
\ |
40 |
|
|
A positioning accuracy/repeat positioning accuracy |
arc.sec |
10/6 |
10/6 |
\ |
|
|
B positioning accuracy/repeat positioning accuracy |
arc.sec |
8/4 |
\ |
8/4 |
|
|
Tool magazine |
Tool magazine capacity |
T |
72 |
72 |
72 |
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/empty tool) |
mm |
110/300 |
110/300 |
110/300 |
|
|
Maximum tool length |
mm |
470 |
470 |
470 |
|
|
Maximum tool weight |
kg |
20 |
20 |
20 |
|
|
Project |
Unit |
A15L |
A15L+a |
A15L+b |
|
|
Travel |
X/Y/Z axis travel |
mm |
1500/1000/650 |
1500/1000/650 |
1500/1000/650 |
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
-250～750 |
±500 |
\ |
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
350-1000 |
300-950 |
\ |
|
|
Distance from B axis disk to A axis rotation center |
mm |
150 |
\ |
\ |
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
\ |
\ |
200-1200 |
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
\ |
\ |
300-950 |
|
|
Maximum rotation diameter of B axis |
mm |
1800 |
\ |
1700 |
|
|
Maximum rotation diameter of A axis |
mm |
1960 |
1500 |
\ |
|
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
210/Built-in |
210/Built-in |
210/Built-in |
|
Spindle taper |
mm |
A100 |
A100 |
A100 |
|
|
Spindle maximum speed |
r/min |
8000 |
8000 |
8000 |
|
|
Spindle motor rated power |
kW |
31.4KW |
31.4KW |
31.4KW |
|
|
Spindle rated torque |
N.m |
150 |
150 |
150 |
|
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
100/100/100 |
100/100/100 |
100/100/100 |
|
Axial acceleration |
m/S² |
10/10/10 |
10/10/10 |
10/10/10 |
|
|
Positioning accuracy |
mm |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
|
|
Turntable |
Disk diameter |
mm |
420 positioning plate |
\ |
800*800 |
|
Allowable load |
kg |
1500 |
1500 |
1500 |
|
|
A-axis travel |
° |
+90°~-180° |
360° |
\ |
|
|
B-axis travel |
0 |
360° |
\ |
360° |
|
|
A-axis maximum speed |
rpm |
40 |
40 |
\ |
|
|
B-axis maximum speed |
rpm |
40 |
\ |
40 |
|
|
A positioning accuracy/repeat positioning accuracy |
arc.sec |
10/6 |
10/6 |
\ |
|
|
B positioning accuracy/repeat positioning accuracy |
arc.sec |
8/4 |
\ |
8/4 |
|
|
Tool magazine |
Tool magazine capacity |
T |
72T |
72T |
72T |
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/empty tool) |
mm |
110/300 |
110/300 |
110/300 |
|
|
Maximum tool length |
mm |
550 |
550 |
550 |
|
|
Maximum tool weight |
kg |
20 |
20 |
20 |
|
Technical Specifications
|
Project |
Unit |
A20L |
A20L+a |
A20L+b |
|
|
Travel |
X/Y/Z axis travel |
mm |
2000/1500/85C |
2000/1500/850 |
2000/1500/850 |
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
-750~750 |
±750 |
\ |
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
150-1000 |
150-1000 |
\ |
|
|
Distance from B axis disk to A axis rotation center |
mm |
\ |
\ |
\ |
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
\ |
\ |
200-1700 |
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
\ |
\ |
200-1200 |
|
|
Maximum rotation diameter of B axis |
mm |
\ |
\ |
\ |
|
|
Maximum rotation diameter of A axis |
mm |
\ |
1800 |
\ |
|
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
210/Built-in |
210/Built-in |
210/Built-in |
|
Spindle taper |
mm |
A100 |
A100 |
A100 |
|
|
Spindle maximum speed |
r/min |
8000 |
8000 |
8000 |
|
|
Spindle motor rated power |
kW |
31.4 |
31.4 |
31.4 |
|
|
Spindle rated torque |
N.m |
150 |
150 |
150 |
|
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
100/100/100 |
100/100/100 |
100/100/100 |
|
Axial acceleration |
m/S² |
10/10/10 |
10/10/10 |
10/10/10 |
|
|
Positioning accuracy |
mm |
0.012/0.01/0.008 |
0.012/0.01/0.008 |
0.012/0.01/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
|
|
Five-axis head |
B-axis travel (five-axis head) |
° |
\ |
\ |
\ |
|
C-axis travel (five-axis head) |
° |
\ |
\ |
\ |
|
|
B-axis maximum speed (five-axis head) |
rpm |
\ |
\ |
\ |
|
|
C-axis maximum speed (five-axis head) |
rpm |
\ |
\ |
\ |
|
|
Five-axis head positioning accuracy B/C |
arc.sec |
\ |
\ |
\ |
|
|
Five-axis head repeatability |
arc.sec |
\ |
\ |
\ |
|
|
Turntable
|
Disk diameter |
mm |
420 positioning plate |
\ |
\ |
|
Allowable load |
kg |
2000 |
2000 |
2000 |
|
|
A-axis travel |
° |
90～-180 |
360° |
\ |
|
|
B-axis travel |
0 |
360° |
\ |
360° |
|
|
A-axis maximum speed |
rpm |
40 |
40 |
\ |
|
|
B-axis maximum speed |
rpm |
40 |
\ |
40 |
|
|
A positioning accuracy/repeat positioning accuracy |
arc.sec |
10/6 |
10/6 |
\ |
|
|
B positioning accuracy/repeat positioning accuracy |
arc.sec |
8/4 |
\ |
8/4 |
|
|
Tool magazine |
Tool magazine capacity |
T |
72 |
72 |
72 |
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/empty tool) |
mm |
110/300 |
110/300 |
110/300 |
|
|
Maximum tool length |
mm |
470 |
470 |
470 |
|
|
Maximum tool weight |
kg |
20 |
20 |
20 |
|
|
Project |
Unit |
A25L+a |
A25L+b |
A20LS+a |
|
|
Travel |
X/Y/Z axis travel |
mm |
2500/1500/1000 |
2500/1500/1000 |
2000/1500/850 |
|
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
±750 |
\ |
±750 |
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
150 |
\ |
150-1000 |
|
|
Distance from B axis disk to A axis rotation center |
mm |
\ |
\ |
\ |
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
\ |
200-1700 |
\ |
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
\ |
200-1200 |
\ |
|
|
Maximum rotation diameter of B axis |
mm |
\ |
2000 |
\ |
|
|
Maximum rotation diameter of A axis |
mm |
2000 |
\ |
1800 |
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
210/Built-in |
210/Built-in |
Five-axis head |
|
|
Spindle taper |
mm |
A100 |
A100 |
A63 |
|
|
Spindle maximum speed |
r/min |
8000 |
8000 |
20000 |
|
|
Spindle motor rated power |
kW |
31.4 |
31.4 |
20/25 |
|
|
Spindle rated torque |
N.m |
150 |
150 |
25/31 |
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
120/120/120 |
120/120/120 |
120/120/120 |
|
|
Axial acceleration |
m/S² |
10/10/10 |
10/10/10 |
10/10/10 |
|
|
Positioning accuracy |
mm |
0.015/0.01/0.008 |
0.015/0.01/0.008 |
0.01/0.01/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
|
Five-axis head |
B-axis travel (five-axis head) |
° |
\ |
\ |
±110° |
|
|
C-axis travel (five-axis head) |
° |
\ |
\ |
±360° |
|
|
B-axis maximum speed (five-axis head) |
rpm |
\ |
\ |
60 |
|
|
C-axis maximum speed (five-axis head) |
rpm |
\ |
\ |
60 |
|
|
Five-axis head positioning accuracy B/C |
arc.sec |
\ |
\ |
8/8 |
|
|
Five-axis head repeatability |
arc.sec |
\ |
\ |
4/4 |
|
Turntable |
Disk diameter |
mm |
\ |
\ |
\ |
|
|
Allowable load |
kg |
2000 |
2500 |
2000 |
|
|
A-axis travel |
° |
360° |
\ |
360° |
|
|
B-axis travel |
0 |
\ |
360° |
\ |
|
|
A-axis maximum speed |
rpm |
25 |
\ |
25 |
|
|
B-axis maximum speed |
rpm |
\ |
25 |
\ |
|
|
A positioning accuracy/repeat positioning accuracy |
arc.sec |
10/6 |
\ |
10/6 |
|
|
B positioning accuracy/repeat positioning accuracy |
arc.sec |
\ |
8/4 |
\ |
|
Tool magazine |
Tool magazine capacity |
T |
72 |
72 |
60 |
|
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/empty tool) |
mm |
110/300 |
110/300 |
80/160 |
|
|
Maximum tool length |
mm |
470 |
470 |
470 |
|
|
Maximum tool weight |
kg |
20 |
20 |
8 |
Technical Specifications
|
Project |
Unit |
A20LS+b |
A25LS+a |
A25LS+b |
A25LⅡS+a |
|
|
Travel |
X/Y/Z axis travel |
mm |
2000/1500/850 |
2500*1500*1000 |
2500*1500*1000 |
2500*1500*1000 |
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
\ |
±750 |
\ |
±750 |
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
\ |
20-1020 |
\ |
20-1020 |
|
|
Distance from B axis disk to A axis rotation center |
mm |
\ |
\ |
\ |
\ |
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
200-1700 |
\ |
200-1700 |
\ |
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
200-1200 |
\ |
200-1200 |
\ |
|
|
Maximum rotation diameter of B axis |
mm |
2200 |
\ |
2000 |
\ |
|
|
Maximum rotation diameter of A axis |
mm |
\ |
2000 |
\ |
2000 |
|
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
Five-axis head |
Five-axis head |
Five-axis head |
Five-axis head |
|
Spindle taper |
mm |
A63 |
A63 |
A63 |
A63 |
|
|
Spindle maximum speed |
r/min |
20000 |
20000 |
20000 |
20000 |
|
|
Spindle motor rated power |
kW |
20/25 |
20/25 |
20/25 |
20/25 |
|
|
Spindle rated torque |
N.m |
25/31 |
25/31 |
25/31 |
25/31 |
|
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
120/120/120 |
120/120/120 |
120/120/120 |
120/120/120 |
|
Axial acceleration |
m/S² |
10/10/10 |
10/10/10 |
10/10/10 |
10/10/10 |
|
|
Positioning accuracy |
mm |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
|
|
Five-axis head |
B-axis travel (five-axis head) |
±110° |
±110° |
±110° |
±110° |
|
|
C-axis travel (five-axis head) |
±360° |
±360° |
±360° |
±360° |
||
|
B-axis maximum speed (five-axis head) |
60 |
60 |
60 |
60 |
||
|
C-axis maximum speed (five-axis head) |
60 |
60 |
60 |
60 |
||
|
Five-axis head positioning accuracy B/C |
8/8 |
8/8 |
8/8 |
8/8 |
||
|
Five-axis head repeatability |
4/4 |
4/4 |
4/4 |
4/4 |
||
|
Turntable |
Disk diameter |
mm |
\ |
\ |
\ |
\ |
|
Allowable load |
kg |
2000 |
2000 |
2500 |
2000 |
|
|
A-axis travel |
° |
\ |
360° |
\ |
360° |
|
|
B-axis travel |
0 |
360° |
\ |
360° |
\ |
|
|
A-axis maximum speed |
rpm |
\ |
25 |
\ |
25 |
|
|
B-axis maximum speed |
rpm |
25 |
\ |
25 |
\ |
|
|
A positioning accuracy/Repeat positioning accuracy |
arc.sec |
\ |
10/6 |
\ |
10/6 |
|
|
B positioning accuracy/Repeat positioning accuracy |
arc.sec |
8/4 |
\ |
8/4 |
\ |
|
|
Tool magazine |
Tool magazine capacity |
T |
60 |
60 |
60 |
60*2 |
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/Empty tool) |
mm |
80/160 |
80/160 |
80/160 |
80/160 |
|
|
Maximum tool length |
mm |
470 |
470 |
470 |
470 |
|
|
Maximum tool weight |
kg |
8 |
8 |
8 |
8 |
|

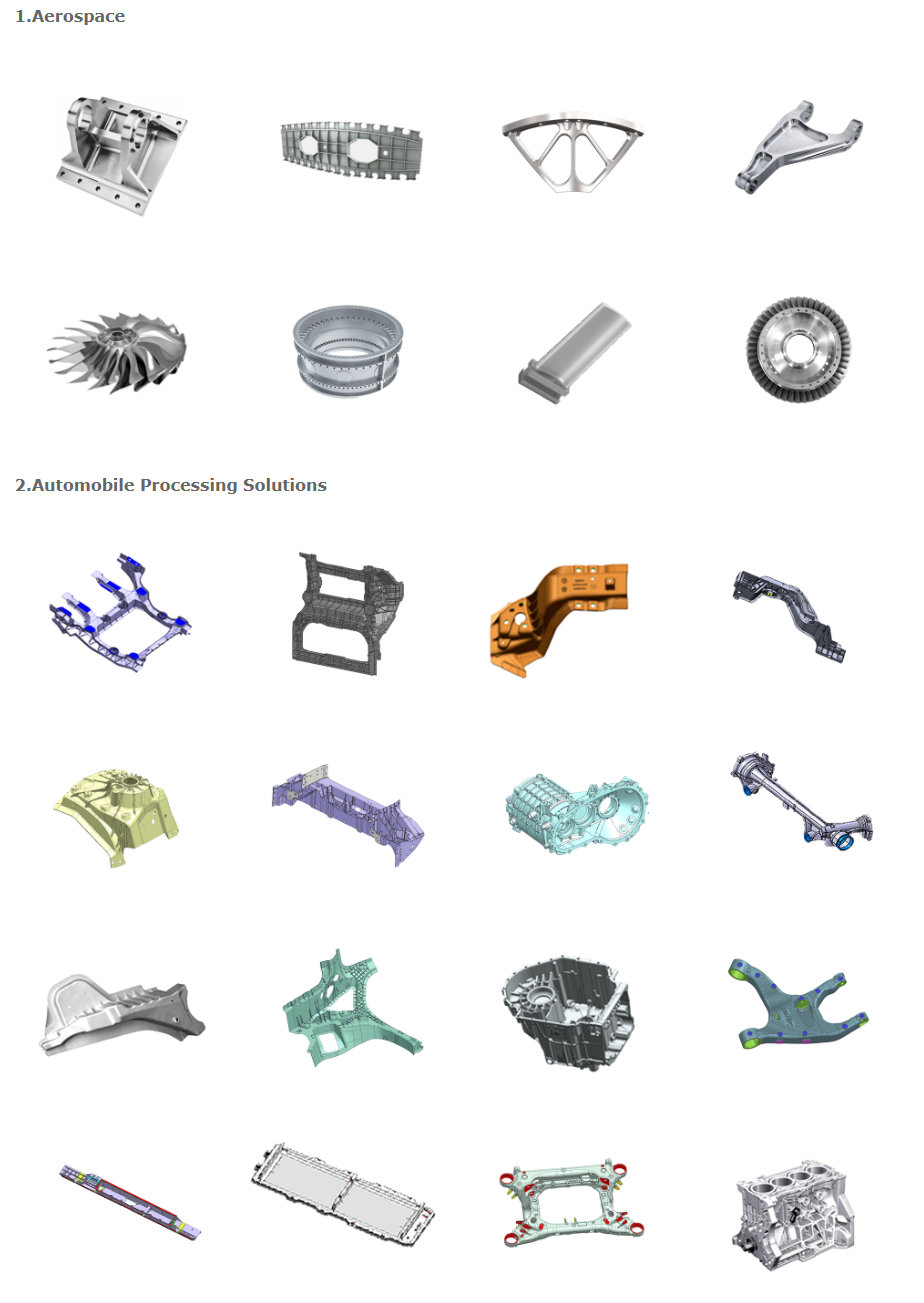

Processing Example
1.Aerospace
2.Automobile Processing Solutions
Performance Advantages
1. Completed machine adopts a moving column structure, the tool moves in three axes, and the workpiece rotates in two axes, which can realize five-axis linkage
2. Lightweight design, linear axis 90M/min fast displacement. Acceleration 0.8G
3. A-axis and axis both adopt direct drive structure, zero transmission chain, zero reverse clearance, good rigidity; high-precision angle encoder realizes precise positioning
4. The bed is T-shaped, the X-axis is arranged in a stepped guide rail, the moving parts are light, and the force condition is good:
5. The spindle adopts a high-speed electric spindle, fast speed, low noise: 6 three linear axis roller guide rails. Low friction, high rigidity;
Suitable model A5 A8 A13
Performance Advantages
1. Lightweight design, direct drive motor application, the highest rapid displacement can reach
120m/min, the fastest speed is 1Gh;
2. Horizontal machine tools have better openness than gantry machine tools, easy maintenance, convenient loading, smooth chip removal and other structural advantages:
3. Horizontal dual five-axis machining center, independent left and right three-coordinate units are distributed at both ends of the fixture, without the risk of interference and collision, can maximize the simultaneous processing of two sides and improve processing efficiency:
4. Controlled by a set of CNC system, simple programming, high flexibility, and can adapt to the processing of multiple types of parts by replacing the fixture:
5. With A-axis (cradle) turntable, it is used for the transformation of the processing posture of the front and back sides of the parts. At the same time, the A-axis turntable can easily realize the cleaning and reversing of the fixture positioning surface, without the trouble of chip collection, and it is easy to ensure the reliability of automation
6. The large inclination angle structural design, combined with the machine tool’s dead angle spray, enables the machine tool to achieve the best chip removal effect
Suitable model A15L A20L
Performance Advantages
1. The whole machine adopts a horizontal double five-axis cradle structure:
2. Good rigidity
Suitable model A25L
Master Core Technology, Independent R & D Spindle
CATO masters core technology, has the capability of spindle design, manufacturing and assembly, has a constant temperature workshop of 1000m2 , adopts modular lean production mode. CATO spindle has high rigidity, high speed, high power, high torque and high. Reliability and other characteristics.
The self-developed HSK E40/HSK A63/HSK A100 built-in spindle.
Eliminates jitter and vibration in the range of spindle rotation, and achieves stable accuracy in high-speed long-time machining. The spindle uses forced cooling to cool the motor and front and rear bearings.
Built in motor structure
By eliminating the driving gear, the high-speed rotation can be minimizedIt can improve the accuracy of machining surface and prolong the life of cutter
Spindle temperature management
By circulating the temperature managed cooling oil, theThe thermal displacement of the spindle caused by heating can prevent the change of machining accuracy.
High speed simultaneous two axis milling head
|
Project |
Unit |
A13 |
A13+a |
A13+b |
|
|
Travel |
X/Y/Z axis travel |
mm |
1300/850/650 |
1300/850/650 |
1300/850/650 |
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
-10-840 |
±425 |
|
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
120-770 |
230-880 |
|
|
|
Distance from B axis disk to A axis rotation center |
mm |
60 |
|
|
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
|
|
160-1010 |
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
|
|
120-770 |
|
|
Maximum rotation diameter of B axis |
mm |
1400 |
|
1600 |
|
|
Maximum rotation diameter of A axis |
mm |
1450 |
1200 |
|
|
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
190/Built-in |
190/Built-in |
190/Built-in |
|
Spindle taper |
mm |
A63 |
A63 |
A63 |
|
|
Spindle maximum speed |
r/min |
16000 |
16000 |
16000 |
|
|
Spindle motor rated power |
kW |
30KW |
30KW |
30KW |
|
|
Spindle rated torque |
N.m |
72 |
72 |
72 |
|
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
90/90/90 |
90/90/90 |
90/90/90 |
|
Axial acceleration |
m/S² |
8/8/8 |
8/8/8 |
8/8/8 |
|
|
Positioning accuracy |
mm |
0.015/0.008/0.008 |
0.015/0.008/0.008 |
0.015/0.008/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.012/0.006/0.006 |
0.012/0.006/0.006 |
0.012/0.006/0.006 |
|
|
Turntable |
Disk diameter |
mm |
420 positioning plate |
|
600*600 |
|
Allowable load |
kg |
1000 |
1000 |
1000 |
|
|
A-axis travel |
° |
+90°~-180° |
360° |
|
|
|
B-axis travel |
0 |
360° |
|
360° |
|
|
A-axis maximum speed |
rpm |
40 |
40 |
|
|
|
B-axis maximum speed |
rpm |
40 |
|
40 |
|
|
A positioning accuracy/repeat positioning accuracy |
arc.sec |
10/6 |
10/6 |
|
|
|
B positioning accuracy/repeat positioning accuracy |
arc.sec |
8/4 |
|
8/4 |
|
|
Tool magazine |
Tool magazine capacity |
T |
41T |
41T |
41T |
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/empty tool) |
mm |
80/125 |
80/125 |
80/125 |
|
|
Maximum tool length |
mm |
390 |
390 |
390 |
|
|
Maximum tool weight |
kg |
8 |
8 |
8 |
|
|
Project |
Unit |
A15L |
A15L+a |
A15L+b |
|
|
Travel |
X/Y/Z axis travel |
mm |
1500/1000/650 |
1500/1000/650 |
1500/1000/650 |
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
-250～750 |
±500 |
|
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
350-1000 |
300-950 |
|
|
|
Distance from B axis disk to A axis rotation center |
mm |
150 |
|
|
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
|
|
200-1200 |
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
|
|
300-950 |
|
|
Maximum rotation diameter of B axis |
mm |
1800 |
|
1700 |
|
|
Maximum rotation diameter of A axis |
mm |
1960 |
1500 |
|
|
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
210/Built-in |
210/Built-in |
210/Built-in |
|
Spindle taper |
mm |
A100 |
A100 |
A100 |
|
|
Spindle maximum speed |
r/min |
8000 |
8000 |
8000 |
|
|
Spindle motor rated power |
kW |
31.4KW |
31.4KW |
31.4KW |
|
|
Spindle rated torque |
N.m |
150 |
150 |
150 |
|
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
100/100/100 |
100/100/100 |
100/100/100 |
|
Axial acceleration |
m/S² |
10/10/10 |
10/10/10 |
10/10/10 |
|
|
Positioning accuracy |
mm |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
|
|
Turntable |
Disk diameter |
mm |
420 positioning plate |
|
800*800 |
|
Allowable load |
kg |
1500 |
1500 |
1500 |
|
|
A-axis travel |
° |
+90°~-180° |
360° |
|
|
|
B-axis travel |
0 |
360° |
|
360° |
|
|
A-axis maximum speed |
rpm |
40 |
40 |
|
|
|
B-axis maximum speed |
rpm |
40 |
|
40 |
|
|
A positioning accuracy/repeat positioning accuracy |
arc.sec |
10/6 |
10/6 |
|
|
|
B positioning accuracy/repeat positioning accuracy |
arc.sec |
8/4 |
|
8/4 |
|
|
Tool magazine |
Tool magazine capacity |
T |
72T |
72T |
72T |
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/empty tool) |
mm |
110/300 |
110/300 |
110/300 |
|
|
Maximum tool length |
mm |
550 |
550 |
550 |
|
|
Maximum tool weight |
kg |
20 |
20 |
20 |
|
|
Project |
Unit |
A20L |
A20L+a |
A20L+b |
|
|
Travel |
X/Y/Z axis travel |
mm |
2000/1500/85C |
2000/1500/850 |
2000/1500/850 |
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
-750~750 |
±750 |
|
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
150-1000 |
150-1000 |
|
|
|
Distance from B axis disk to A axis rotation center |
mm |
|
|
|
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
|
|
200-1700 |
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
|
|
200-1200 |
|
|
Maximum rotation diameter of B axis |
mm |
|
|
|
|
|
Maximum rotation diameter of A axis |
mm |
|
1800 |
|
|
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
210/Built-in |
210/Built-in |
210/Built-in |
|
Spindle taper |
mm |
A100 |
A100 |
A100 |
|
|
Spindle maximum speed |
r/min |
8000 |
8000 |
8000 |
|
|
Spindle motor rated power |
kW |
31.4 |
31.4 |
31.4 |
|
|
Spindle rated torque |
N.m |
150 |
150 |
150 |
|
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
100/100/100 |
100/100/100 |
100/100/100 |
|
Axial acceleration |
m/S² |
10/10/10 |
10/10/10 |
10/10/10 |
|
|
Positioning accuracy |
mm |
0.012/0.01/0.008 |
0.012/0.01/0.008 |
0.012/0.01/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
|
|
Five-axis head |
B-axis travel (five-axis head) |
° |
|
|
|
|
C-axis travel (five-axis head) |
° |
|
|
|
|
|
B-axis maximum speed (five-axis head) |
rpm |
|
|
|
|
|
C-axis maximum speed (five-axis head) |
rpm |
|
|
|
|
|
Five-axis head positioning accuracy B/C |
arc.sec |
|
|
|
|
|
Five-axis head repeatability |
arc.sec |
|
|
|
|
|
Turntable |
Disk diameter |
mm |
420 positioning plate |
|
|
|
Allowable load |
kg |
2000 |
2000 |
2000 |
|
|
A-axis travel |
° |
90～-180 |
360° |
|
|
|
B-axis travel |
0 |
360° |
|
360° |
|
|
A-axis maximum speed |
rpm |
40 |
40 |
|
|
|
B-axis maximum speed |
rpm |
40 |
|
40 |
|
|
A positioning accuracy/repeat positioning accuracy |
arc.sec |
10/6 |
10/6 |
|
|
|
B positioning accuracy/repeat positioning accuracy |
arc.sec |
8/4 |
|
8/4 |
|
|
Tool magazine |
Tool magazine capacity |
T |
72 |
72 |
72 |
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/empty tool) |
mm |
110/300 |
110/300 |
110/300 |
|
|
Maximum tool length |
mm |
470 |
470 |
470 |
|
|
Maximum tool weight |
kg |
20 |
20 |
20 |
|
|
Project |
Unit |
A15L |
A15L+a |
A15L+b |
|
|
Travel |
X/Y/Z axis travel |
mm |
1500/1000/650 |
1500/1000/650 |
1500/1000/650 |
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
-250～750 |
±500 |
|
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
350-1000 |
300-950 |
|
|
|
Distance from B axis disk to A axis rotation center |
mm |
150 |
|
|
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
|
|
200-1200 |
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
|
|
300-950 |
|
|
Maximum rotation diameter of B axis |
mm |
1800 |
|
1700 |
|
|
Maximum rotation diameter of A axis |
mm |
1960 |
1500 |
|
|
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
210/Built-in |
210/Built-in |
210/Built-in |
|
Spindle taper |
mm |
A100 |
A100 |
A100 |
|
|
Spindle maximum speed |
r/min |
8000 |
8000 |
8000 |
|
|
Spindle motor rated power |
kW |
31.4KW |
31.4KW |
31.4KW |
|
|
Spindle rated torque |
N.m |
150 |
150 |
150 |
|
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
100/100/100 |
100/100/100 |
100/100/100 |
|
Axial acceleration |
m/S² |
10/10/10 |
10/10/10 |
10/10/10 |
|
|
Positioning accuracy |
mm |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
|
|
Turntable |
Disk diameter |
mm |
420 positioning plate |
|
800*800 |
|
Allowable load |
kg |
1500 |
1500 |
1500 |
|
|
A-axis travel |
° |
+90°~-180° |
360° |
|
|
|
B-axis travel |
0 |
360° |
|
360° |
|
|
A-axis maximum speed |
rpm |
40 |
40 |
|
|
|
B-axis maximum speed |
rpm |
40 |
|
40 |
|
|
A positioning accuracy/repeat positioning accuracy |
arc.sec |
10/6 |
10/6 |
|
|
|
B positioning accuracy/repeat positioning accuracy |
arc.sec |
8/4 |
|
8/4 |
|
|
Tool magazine |
Tool magazine capacity |
T |
72T |
72T |
72T |
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/empty tool) |
mm |
110/300 |
110/300 |
110/300 |
|
|
Maximum tool length |
mm |
550 |
550 |
550 |
|
|
Maximum tool weight |
kg |
20 |
20 |
20 |
|
|
Project |
Unit |
A20L |
A20L+a |
A20L+b |
|
|
Travel |
X/Y/Z axis travel |
mm |
2000/1500/85C |
2000/1500/850 |
2000/1500/850 |
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
-750~750 |
±750 |
|
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
150-1000 |
150-1000 |
|
|
|
Distance from B axis disk to A axis rotation center |
mm |
|
|
|
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
|
|
200-1700 |
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
|
|
200-1200 |
|
|
Maximum rotation diameter of B axis |
mm |
|
|
|
|
|
Maximum rotation diameter of A axis |
mm |
|
1800 |
|
|
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
210/Built-in |
210/Built-in |
210/Built-in |
|
Spindle taper |
mm |
A100 |
A100 |
A100 |
|
|
Spindle maximum speed |
r/min |
8000 |
8000 |
8000 |
|
|
Spindle motor rated power |
kW |
31.4 |
31.4 |
31.4 |
|
|
Spindle rated torque |
N.m |
150 |
150 |
150 |
|
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
100/100/100 |
100/100/100 |
100/100/100 |
|
Axial acceleration |
m/S² |
10/10/10 |
10/10/10 |
10/10/10 |
|
|
Positioning accuracy |
mm |
0.012/0.01/0.008 |
0.012/0.01/0.008 |
0.012/0.01/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
|
|
Five-axis head |
B-axis travel (five-axis head) |
° |
|
|
|
|
C-axis travel (five-axis head) |
° |
|
|
|
|
|
B-axis maximum speed (five-axis head) |
rpm |
|
|
|
|
|
C-axis maximum speed (five-axis head) |
rpm |
|
|
|
|
|
Five-axis head positioning accuracy B/C |
arc.sec |
|
|
|
|
|
Five-axis head repeatability |
arc.sec |
|
|
|
|
|
Turntable
|
Disk diameter |
mm |
420 positioning plate |
|
|
|
Allowable load |
kg |
2000 |
2000 |
2000 |
|
|
A-axis travel |
° |
90～-180 |
360° |
|
|
|
B-axis travel |
0 |
360° |
|
360° |
|
|
A-axis maximum speed |
rpm |
40 |
40 |
|
|
|
B-axis maximum speed |
rpm |
40 |
|
40 |
|
|
A positioning accuracy/repeat positioning accuracy |
arc.sec |
10/6 |
10/6 |
|
|
|
B positioning accuracy/repeat positioning accuracy |
arc.sec |
8/4 |
|
8/4 |
|
|
Tool magazine |
Tool magazine capacity |
T |
72 |
72 |
72 |
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/empty tool) |
mm |
110/300 |
110/300 |
110/300 |
|
|
Maximum tool length |
mm |
470 |
470 |
470 |
|
|
Maximum tool weight |
kg |
20 |
20 |
20 |
|
|
Project |
Unit |
A25L+a |
A25L+b |
A20LS+a |
|
|
Travel |
X/Y/Z axis travel |
mm |
2500/1500/1000 |
2500/1500/1000 |
2000/1500/850 |
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
±750 |
|
±750 |
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
150 |
|
150-1000 |
|
|
Distance from B axis disk to A axis rotation center |
mm |
|
|
|
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
|
200-1700 |
|
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
|
200-1200 |
|
|
|
Maximum rotation diameter of B axis |
mm |
|
2000 |
|
|
|
Maximum rotation diameter of A axis |
mm |
2000 |
|
1800 |
|
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
210/Built-in |
210/Built-in |
Five-axis head |
|
Spindle taper |
mm |
A100 |
A100 |
A63 |
|
|
Spindle maximum speed |
r/min |
8000 |
8000 |
20000 |
|
|
Spindle motor rated power |
kW |
31.4 |
31.4 |
20/25 |
|
|
Spindle rated torque |
N.m |
150 |
150 |
25/31 |
|
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
120/120/120 |
120/120/120 |
120/120/120 |
|
Axial acceleration |
m/S² |
10/10/10 |
10/10/10 |
10/10/10 |
|
|
Positioning accuracy |
mm |
0.015/0.01/0.008 |
0.015/0.01/0.008 |
0.01/0.01/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
|
|
Five-axis head |
B-axis travel (five-axis head) |
° |
|
|
±110° |
|
C-axis travel (five-axis head) |
° |
|
|
±360° |
|
|
B-axis maximum speed (five-axis head) |
rpm |
|
|
60 |
|
|
C-axis maximum speed (five-axis head) |
rpm |
|
|
60 |
|
|
Five-axis head positioning accuracy B/C |
arc.sec |
|
|
8/8 |
|
|
Five-axis head repeatability |
arc.sec |
|
|
4/4 |
|
|
Turntable |
Disk diameter |
mm |
|
|
|
|
Allowable load |
kg |
2000 |
2500 |
2000 |
|
|
A-axis travel |
° |
360° |
|
360° |
|
|
B-axis travel |
0 |
|
360° |
|
|
|
A-axis maximum speed |
rpm |
25 |
|
25 |
|
|
B-axis maximum speed |
rpm |
|
25 |
|
|
|
A positioning accuracy/repeat positioning accuracy |
arc.sec |
10/6 |
|
10/6 |
|
|
B positioning accuracy/repeat positioning accuracy |
arc.sec |
|
8/4 |
|
|
|
Tool magazine |
Tool magazine capacity |
T |
72 |
72 |
60 |
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/empty tool) |
mm |
110/300 |
110/300 |
80/160 |
|
|
Maximum tool length |
mm |
470 |
470 |
470 |
|
|
Maximum tool weight |
kg |
20 |
20 |
8 |
|
|
Project |
Unit |
A20LS+b |
A25LS+a |
A25LS+b |
A25LⅡS+a |
|
|
Travel |
X/Y/Z axis travel |
mm |
2000/1500/850 |
2500*1500*1000 |
2500*1500*1000 |
2500*1500*1000 |
|
Distance from spindle center to A axis rotation center (Y direction) |
mm |
|
±750 |
|
±750 |
|
|
Distance from spindle end face to A axis rotation center (Z direction) |
mm |
|
20-1020 |
|
20-1020 |
|
|
Distance from B axis disk to A axis rotation center |
mm |
|
|
|
|
|
|
Distance from spindle center to worktable surface (Y direction) |
mm |
200-1700 |
|
200-1700 |
|
|
|
Distance from spindle end face to B axis rotation center (Z direction) |
mm |
200-1200 |
|
200-1200 |
|
|
|
Maximum rotation diameter of B axis |
mm |
2200 |
|
2000 |
|
|
|
Maximum rotation diameter of A axis |
mm |
|
2000 |
|
2000 |
|
|
Spindle |
Spindle specifications (installation diameter/transmission mode) |
mm |
Five-axis head |
Five-axis head |
Five-axis head |
Five-axis head |
|
Spindle taper |
mm |
A63 |
A63 |
A63 |
A63 |
|
|
Spindle maximum speed |
r/min |
20000 |
20000 |
20000 |
20000 |
|
|
Spindle motor rated power |
kW |
20/25 |
20/25 |
20/25 |
20/25 |
|
|
Spindle rated torque |
N.m |
25/31 |
25/31 |
25/31 |
25/31 |
|
|
Three-axis |
X/Y/Z axis rapid displacement |
m/min |
120/120/120 |
120/120/120 |
120/120/120 |
120/120/120 |
|
Axial acceleration |
m/S² |
10/10/10 |
10/10/10 |
10/10/10 |
10/10/10 |
|
|
Positioning accuracy |
mm |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
0.01/0.01/0.008 |
|
|
Repeat positioning accuracy |
mm |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
0.008/0.008/0.006 |
|
|
Five-axis head |
B-axis travel (five-axis head) |
±110° |
±110° |
±110° |
±110° |
|
|
C-axis travel (five-axis head) |
±360° |
±360° |
±360° |
±360° |
||
|
B-axis maximum speed (five-axis head) |
60 |
60 |
60 |
60 |
||
|
C-axis maximum speed (five-axis head) |
60 |
60 |
60 |
60 |
||
|
Five-axis head positioning accuracy B/C |
8/8 |
8/8 |
8/8 |
8/8 |
||
|
Five-axis head repeatability |
4/4 |
4/4 |
4/4 |
4/4 |
||
|
Turntable |
Disk diameter |
mm |
|
|
|
|
|
Allowable load |
kg |
2000 |
2000 |
2500 |
2000 |
|
|
A-axis travel |
° |
|
360° |
|
360° |
|
|
B-axis travel |
0 |
360° |
|
360° |
|
|
|
A-axis maximum speed |
rpm |
|
25 |
|
25 |
|
|
B-axis maximum speed |
rpm |
25 |
|
25 |
|
|
|
A positioning accuracy/Repeat positioning accuracy |
arc.sec |
|
10/6 |
|
10/6 |
|
|
B positioning accuracy/Repeat positioning accuracy |
arc.sec |
8/4 |
|
8/4 |
|
|
|
Tool magazine |
Tool magazine capacity |
T |
60 |
60 |
60 |
60*2 |
|
Tool exchange time (T-T) |
S |
5 |
5 |
5 |
5 |
|
|
Maximum tool diameter (full tool/Empty tool) |
mm |
80/160 |
80/160 |
80/160 |
80/160 |
|
|
Maximum tool length |
mm |
470 |
470 |
470 |
470 |
|
|
Maximum tool weight |
kg |
8 |
8 |
8 |
8 |
|
Products categories
-
CNC Vertical Turning and Milling Composite Cent...
-
High Speed CNC Machining Center GM Series
-
High Speed CNC Milling GT Series
-
Dual-Spindle CNC Lathe SK32
-
CNC Vertical Machining Center RFTV510 For Wheel...
-
CNC Vertical Machining Center RFMV Series For W...
-
CNC Vertical Lathe RFCL63V/D For Wheel Hub
-
CNC Horizontal Lathe RFCP Series for Wheel Hub
-
Specific Machine for Crankshaft HG40/50QZ
-
Specific CNC Turning and Grinding Machine HGQM-01
-
Specific Machine for Flywheel HG40/50L
-
Specific Machine for Rear Axle HGZK-06
