CNC machine alarm lights are crucial safety warning signals during CNC machine tool operation. They alert operators to the equipment’s operating status through audible feedback (such as beeps or warning sounds). Whether the alarm light sound is normal is directly related to whether equipment faults can be detected promptly, ensuring safe machine tool operation. Abnormal alarm light sound, such as no sound or intermittent sound, not only affects maintenance efficiency but may also pose a safety hazard. This article will explain the symptoms of abnormal alarm light sound and provide a systematic troubleshooting and repair process to help equipment maintenance personnel efficiently resolve issues and ensure stable machine tool operation.
Common Symptoms and Troubleshooting of Abnormal Alarm Light Sound
Abnormal alarm light sound often manifests in three ways:
· No sound: This is usually caused by a disconnected audio output link or a power supply problem.
· Noise or distortion: This is usually caused by aging or damage to sound-generating components such as the buzzer or speaker, or unstable power supply voltage.
· Intermittent or discontinuous sound: This is often caused by poor contact or an unstable connection in the signal transmission line.
Furthermore, determining the scope of the abnormal sound is crucial. Does the problem occur only in specific alarm states, such as the emergency stop or overload alarm? Or is the abnormal sound common to all alarms? If only some alarms sound abnormally, there may be a problem with the alarm system’s logic or related sensors. If all alarms sound abnormally, there may be a problem with the alarm light hardware or the power supply system. Clarifying these issues will help narrow down the scope of the investigation and save time.
Systematic steps for troubleshooting alarm light sound problems
1. Check the power supply and signal lines
The alarm light’s sound module must rely on a stable power supply, so the first task is to verify the power supply. Maintenance personnel should first turn off the machine’s main power supply and then use a multimeter to measure the voltage at the alarm light’s power terminals, typically 24V DC. If the voltage shows no voltage or significant fluctuations, the next step is to check for a blown fuse or oxidation on the contactor’s contacts. A blown fuse should be replaced immediately, while oxidized contacts should be sanded with fine sandpaper and re-tightened to ensure good contact.
Next, trace the signal cable connecting the alarm light and inspect the cables and connectors from the alarm light’s terminal block all the way to the PLC output module or alarm control unit. Long-term vibration of CNC machine can easily loosen or damage cable connectors. Damaged shielding can also introduce interference, causing signal abnormalities. During maintenance, check each component individually, reconnect the terminals, and tighten the connecting screws to ensure the wiring is in good condition and the shielding is intact.
2. Hardware Inspection and Replacement of Sounding Components
After verifying that the power and signal lines are normal, the buzzer or speaker inside the alarm light may have a problem. After powering off the alarm light, disassemble the alarm light and visually inspect the sounding component for obvious damage, such as a cracked diaphragm or burned coil. If the appearance is normal, use a multimeter to measure the sounding component’s resistance. An abnormal resistance value (extremely high or close to zero) indicates a component failure.
When replacing parts, ensure that the new component’s voltage specifications and mounting dimensions match the old ones. During installation, pay close attention to polarity to avoid reverse connection, which can cause secondary damage. Selecting qualified parts ensures long-term, stable operation of the alarm light.
3. Verify PLC System Parameters and Alarm Logic
If the hardware is intact, the next step is to verify the alarm settings in the machine tool control system. Use the PLC programming interface or parameter settings page to check whether the alarm sound is activated. Some machine tools allow the alarm sound to be muted, which can cause the alarm light to be silent. It is also important to verify that the PLC outputs for different alarm types are functioning properly. For example, whether the PLC output for the emergency stop alarm can trigger the alarm sound. If the PLC does not respond, check the emergency stop button and related sensors to see if there is a fault in the front-end triggering component.
Some equipment can adjust the volume and frequency of the alarm sound. If the sound is weak or distorted, restore the default settings and readjust the parameters to ensure a clear and effective sound.
Post-Repair Functional Verification and Routine Maintenance Recommendations
After repairs, be sure to simulate various alarm scenarios for verification, such as pressing the emergency stop button or performing an overload test, to ensure that the alarm light sound is clear and stable. Detailed records of the cause of the fault and the specific repair process should be included in the equipment maintenance file for reference during subsequent maintenance.

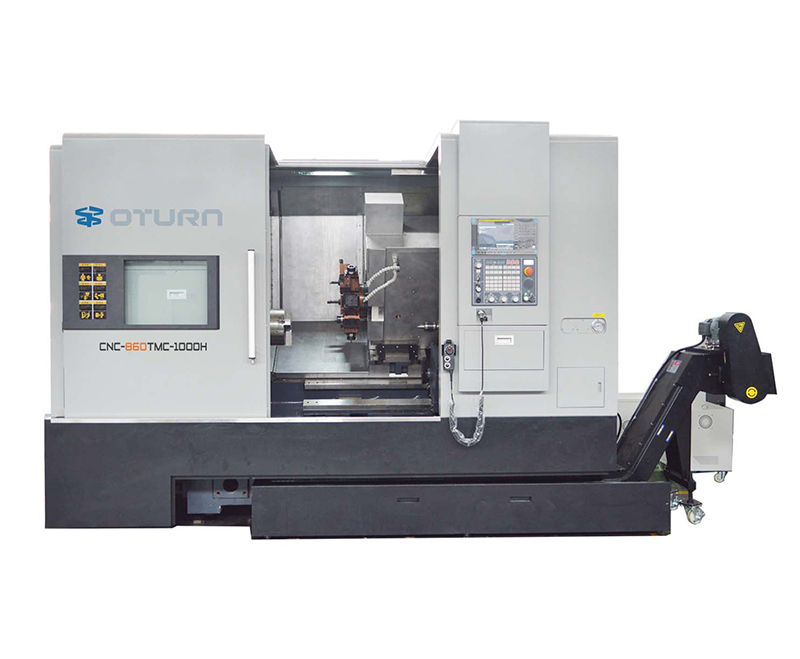

To reduce the incidence of abnormal alarm light sounds, it is recommended to establish a regular maintenance plan. Check the wiring connections and terminal tightness of the alarm light at least monthly to prevent loosening due to equipment vibration. Additionally, when cleaning the CNC turning center, be careful to prevent water and oil from seeping into the alarm light and moisture from damaging the sounding components. If components are found to be aging, timely replacement is crucial to ensuring the long-term effectiveness of the alarm system.
By establishing a systematic maintenance cycle of “troubleshooting – repair – verification – prevention,” not only can the reliability of the alarm light’s sound be improved, but it can also significantly enhance the machine tool’s overall safety warning capabilities, ensuring smooth production.
Conclusion
Alarm light abnormalities may seem minor, but they are crucial to the core function of the machine tool’s safety warning system. The maintenance process should follow the principle of “easy first, difficult later, hardware first, software later,” pinpointing the fault point step by step, from power supply wiring and signal transmission to sounding hardware and system settings. Only in this way can the alarm light’s sound function be quickly restored, the CNC machine tool’s fault response speed be improved, and production safety be guaranteed. Maintenance personnel must not only master scientific maintenance methods but also regularly perform preventive maintenance to fundamentally reduce the occurrence of failures and ensure the safe and efficient operation of CNC machine.
