High-rigidity CNC vertical lathes are a core support in automobile manufacturing, ensuring high precision and high production capacity for key components. Through a stable structure, reliable thermal stability, and controllable machining processes, they achieve high consistency and flexible switching capabilities in mass production.
Contents:
The Status of CNC Vertical Lathes in the Automotive Industry
Core Characteristics of High-Rigidity CNC Vertical Lathes
Key Application Areas in Automobile Manufacturing
Key Elements for Achieving High Rigidity and High Performance
In the current automotive industry’s continuous pursuit of high strength, lightweight design, and complex geometries, high-rigidity vertical CNC lathe have become a crucial mass production platform. They not only handle the high-tolerance machining of core components such as engines, transmissions, and chassis, but also possess the capability for multi-process single-clamping, making production lines more compact and quality more stable. With increasingly frequent model updates, workshops no longer need to machine just a single component well, but also require rapid switching between different components on the same line while maintaining consistent machining quality. This expands the role of high-rigidity vertical lathes from “single-point precision” to “overall line stability and flexibility,” providing key support for achieving both multi-variety, small-batch, and large-batch production.
Core Features of High-Rigidity CNC Vertical Lathe
1.Structural Rigidity and Thermal Deformation Control
The bed and main frame utilize heavy-duty materials and reinforced ribs, combined with a scientific thermal management design to reduce positioning drift caused by thermal expansion. Engineers determine the thermal equilibrium point through thermal simulation and experimental verification, ensuring dimensional repeatability and surface stability during long-term machining.
2.High-Rigidity Spindle and Tool System
The spindle must maintain stable speed and torque output under high turning forces, and the tool system must have rigid connections, good cooling, and reliable clamping stability. The synergy of these two aspects determines the surface quality and geometric accuracy during deep turning and high-speed machining.
3.Rigidity and Control Accuracy of the Feed System
The rigidity of the feed servo and guideways directly affects the positional repeatability during machining. It must be matched with the spindle power and torque to avoid accuracy degradation caused by the superposition of thermal errors and vibrations.
4.Tool Path Optimization and Vibration Control
In actual machining, path planning, segmented feed, and dynamic adjustment of machining parameters are key to suppressing resonance and improving surface roughness and geometric tolerances. The coordinated operation of machine and tooling systems is often a prerequisite for high-stability machining.
Key Application Areas in Automotive Manufacturing:
1.Precision Machining of Transmission System Components
Components such as axles, gears, and gear shafts have extremely high requirements for external roundness, coaxiality, and end faces. The high torque capacity and rigidity of vertical lathes make efficient deep-hole and end-face machining possible, while reducing the accumulation of errors from multiple clamping operations.
2.Critical Machining of Engine Components
The planes, grooves, and holes of components such as engine blocks/cylinder heads require a highly stable machining environment. The ability to complete multiple processes in a single clamping operation significantly improves production efficiency and reduces deviations caused by thermal deformation.
3.Large Components Related to Braking and Suspension Systems
Parts such as brake discs and wheel hubs have stringent requirements for roundness and surface shape; continuous machining stability is the foundation for high yield rates in mass production.
4.Mass Production and Flexible Manufacturing
Standardized process cards, mature tool management, and the ability to respond quickly to new vehicle models are key elements for achieving mass production and multi-product switching.
5. Flexible Machining for Complex Shapes
Through multi-station machining, rapid tool change, and flexible path planning, vertical lathes can adapt to new parts with complex shapes and high tolerances within a short cycle time, maintaining a balance between production capacity and quality.
Key Elements for Achieving High Rigidity and High Performance
1. Continuous Optimization of Structure and Thermal Management
Adopting a box-type base and optimizing overall machine rigidity, combined with an efficient heat dissipation system, reduces the impact of thermal deformation on positioning and dimensions.
2. Synergistic Upgrade of Spindle and Tooling Systems
Selecting a high-stability spindle, high-quality bearings, and efficient tool cooling improves stability and lifespan during long-term machining.
3. Synergistic Innovation of Feed and Electronic Control
High-performance servo drives, precision linear guides, and intelligent control algorithms are the core of improving repeatability and machining stability.
4. Integration of Path Planning and Vibration Control
Through forward-looking machining strategies and real-time monitoring, parameters can be quickly adjusted to ensure the continuity of high tolerances in mass production.
5.Digital Process and Quality Management
A closed-loop system integrating process cards, parameter libraries, tool management, process monitoring, and offline programming enhances traceability and continuous improvement capabilities, making production lines more adaptable.

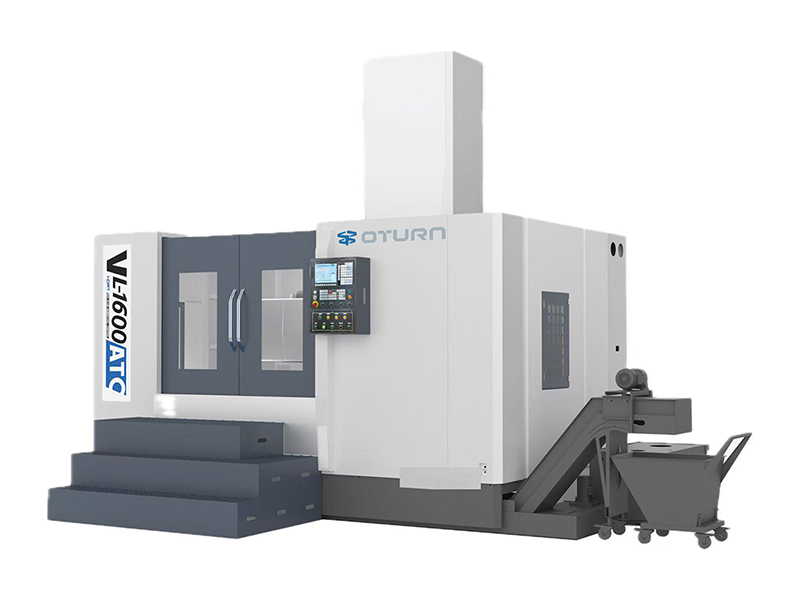

OTURN’s CNC vertical milling and turning center is designed with “high rigidity, one-time clamping for all processes, highly flexible tool changing, and efficient thermal management” as its core design features, catering to the mass production and multi-variety, small-batch production needs of high-end automotive parts. This series integrates vertical machining with various processes such as end-face machining, deep hole machining, gear machining, and complex shape machining on a single machine platform, achieving synergistic optimization of a high-rigidity spindle, a strongly coupled tool system, and high-precision feed control. Through a box-type base, reinforced ribs, and an intelligent thermal management system, the impact of thermal deformation on positioning and dimensions is effectively suppressed, improving consistency and repeatability during long-term machining.
