With the increasing demands in manufacturing for higher precision and efficiency in processing complex parts, 5-axis CNC machining center have become essential tools for efficiently machining complex surfaces and multi-faceted components. This article combines the technical features and practical applications of 5-axis machining, with a particular focus on cost-effectiveness and procurement decisions that concern enterprises, enabling manufacturers to make informed choices and enhance their competitiveness.
I. Core Advantages of 5-Axis Machining Technology

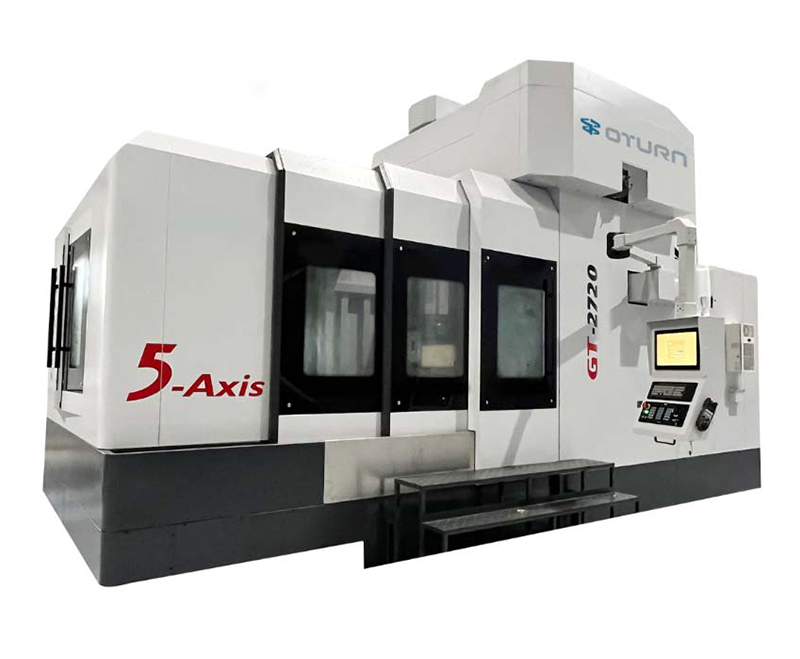

5-axis machining centers simultaneously control three linear axes (X, Y, Z) and two rotary axes (usually A, C, or B), enabling multi-angle and multi-directional coordinated movement of the tool and workpiece. Compared to traditional 3-axis machines, 5-axis machining offers:
· High-Precision Machining of Complex Surfaces
The ability to flexibly adjust the tool angle avoids interference between tool and workpiece, enabling high-precision machining of complex curved and concave structures far beyond the capabilities of 3-axis machines.
· Reduced Workpiece Re-clamping
Traditional 3-axis machining often requires multiple setups to machine multiple surfaces, increasing errors and time. 5-axis machining can complete multi-surface machining in a one time clamping, significantly improving precision and efficiency.
· Extended Tool Life and Improved Efficiency
By optimizing the angle between the tool axis and the machining surface, 5-axis machining reduces tool overhang, enhances rigidity, lowers vibration, extends tool life, and achieves higher turning speeds and shorter machining cycles.
· Improved Surface Quality
Maintaining the optimal turning angle between the tool and workpiece reduces vibration and tool marks, resulting in smoother surfaces and lowering subsequent polishing and finishing costs.
II. Practical Applications and Industry Value
· Aerospace Industry
Complex curved parts, such as aircraft engine blades and structural components, require extremely high machining accuracy and surface quality. 5-axis machining centers meet these strict standards through multi-axis coordinated machining.
· Automotive Manufacturing
Automotive molds and components often feature complex curved and multi-faceted geometries. 5-axis machining completes mold cavities and cores in a single setup, shortening production cycles and improving mold accuracy and part quality.
· Medical Devices
Medical device parts have complex shapes and high precision requirements. 5-axis technology enables high-precision 5-axis CNC machining of complex geometries to ensure product performance and safety.
· Precision Machinery Manufacturing
Complex parts such as gears and pump bodies benefit from efficient multi-surface machining and detailed processing using 5-axis technology, enhancing overall efficiency and quality.
III. Why More Enterprises Choose 5-Axis Machining Centers
5-axis machining centers provide significant advantages:
· Shortened Machining Cycles
Reduced setup and adjustment time improves production efficiency by 20%-40%.
· Lower Scrap Rates
High-precision machining reduces rework, saving materials and labor costs.
· Extended Tool Life
Optimized turning conditions extend tool life by over 30%, lowering consumable costs.
· Reduced Labor Costs
High automation levels reduce reliance on highly skilled operators.
For example, an automotive parts manufacturer saw a 25% reduction in production cycle time and a 15% decrease in scrap rate after adopting 5-axis machining, significantly lowering overall costs.
IV. Procurement and Selection Recommendations
· Clarify Machining Needs
Determine machine specifications based on workpiece size, shape, material, and batch size.
· Focus on Key Parameters
Worktable size, spindle power and speed, axis travel, tool magazine capacity, and machine rigidity.
· Evaluate Supplier Strength
Technical support, after-sales service responsiveness, spare parts availability, and training capabilities.
· Consider Comprehensive Solutions
Whether the supplier offers customization, technology upgrades, and smart manufacturing support.
Conclusion
With its multi-axis coordinated advantages, 5-axis machining centers significantly improve the efficiency and precision of complex part machining, helping enterprises shorten production cycles, reduce manufacturing costs, and enhance competitiveness. When selecting equipment, companies should consider their actual needs and comprehensively evaluate machine performance and service support to maximize investment returns.
OTURN specializes in providing efficient, customized 5-axis machining solutions for manufacturing enterprises, equipped with comprehensive technical support and after-sales services to help clients achieve production upgrades and quality improvements. Contact our professional team for personalized solutions and join us in shaping the future of manufacturing.
