In the field of automobile engine manufacturing, the machining accuracy of core parts, such as cylinder blocks, crankshafts, and camshafts, is directly related to the engine’s power performance and reliability.
The slant-bed CNC horizontal lathe has become a key equipment to meet this stringent requirement due to its unique structural design and precise CNC technology. This article will provide a detailed analysis of the technical advantages of the slant-bed lathe and its wide-ranging applications in engine manufacturing.
Slant-bed structure: the basis for ensuring machining accuracy
The bed of the slant-bed lathe usually adopts a 45° or 60° tilted layout. This design not only significantly enhances the overall rigidity of the machine tool but also cleverly utilizes gravity to facilitate the natural sliding of cutting iron chips. Compared with the traditional flat bed, it avoids the accumulation of iron chips on the surface of the workpiece, thereby reducing scratches and surface defects.
In addition, the relative position of the spindle box and the guide rail is more stable, which effectively resists the cutting torque generated when machining the eccentric journal of the crankshaft, significantly reduces the deformation of the machine tool, and ensures micron-level machining accuracy.
The symmetrical structure of the slant bed can also suppress the dimensional error caused by thermal deformation, so that the machine tool maintains consistent processing quality during long-term continuous processing.
Precision transmission and CNC coordination: realize micron-level control
With the help of a high-precision ball screw and servo motor direct connection, the slant bed CNC horizontal lathe greatly reduces the transmission gap and achieves a resolution of 0.001mm for tool holder movement. The CNC system supports multi-axis simultaneous, can synchronously adjust the spindle speed and tool feed speed, and provides real-time feedback to correct cutting parameters when processing complex curved surfaces such as camshafts to ensure contour accuracy.
For example, when processing the engine piston pin hole, the closed-loop control system can control the roundness error of the hole within 0.002mm, meeting the strict quality requirements of high-end engines.
Strong process adaptability: meet diversified processing needs
The slant bed CNC horizontal lathe is equipped with an automatic feeding mechanism and a multi-functional tool magazine, which can realize the entire processing process from blank to finished product, greatly reducing the positioning error caused by multiple clamping in multiple processes.
For the processing of crankshaft oil channel holes, the special angle cutter head combined with the high-precision spindle can complete the processing of multiple slant holes at one time, reduce the superposition error of traditional processes, and improve the overall processing efficiency.
The CNC equipment also supports program storage and fast call, providing flexible and convenient process switching for mass production, ensuring stable product quality and high production efficiency.
Solving engine manufacturing problems: high rigidity and precise control
The high-rigidity structure of the slant bed design can cope with the processing challenges of high-strength alloy materials, such as the precision processing of turbocharger shafts, and maintain the stability of the journal cylindricality.
With a high-performance servo control system, the uniform feeding of the engine connecting rod big head hole boring is achieved to ensure that the aperture size and surface roughness meet strict requirements.
These technical advantages have promoted the improvement of engine performance, achieved the goal of stronger power and lower fuel consumption, and helped the automotive industry move towards a new era of green manufacturing and intelligent manufacturing.
Choose a professional slant bed CNC horizontal lathe to help upgrade engine manufacturing
For the high-precision processing needs of key parts of automobile engines, it is crucial to choose a horizontal lathe with an advanced slant bed structure and an intelligent CNC system.

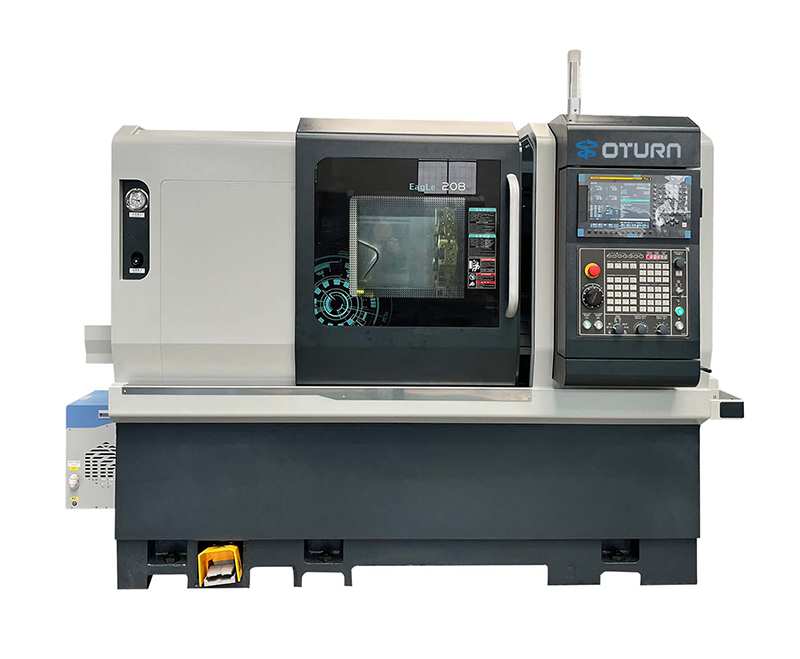

OTURN provides high-rigidity, multi-axis simultaneous, intelligent and automated slant CNC lathe, which are specially designed for the processing of engine core parts and have excellent processing stability and production efficiency.
Whether it is complex curved parts or high-strength alloy materials, our slant bed lathes can accurately meet the needs, helping customers achieve efficient and high-quality automobile engine manufacturing upgrades.
