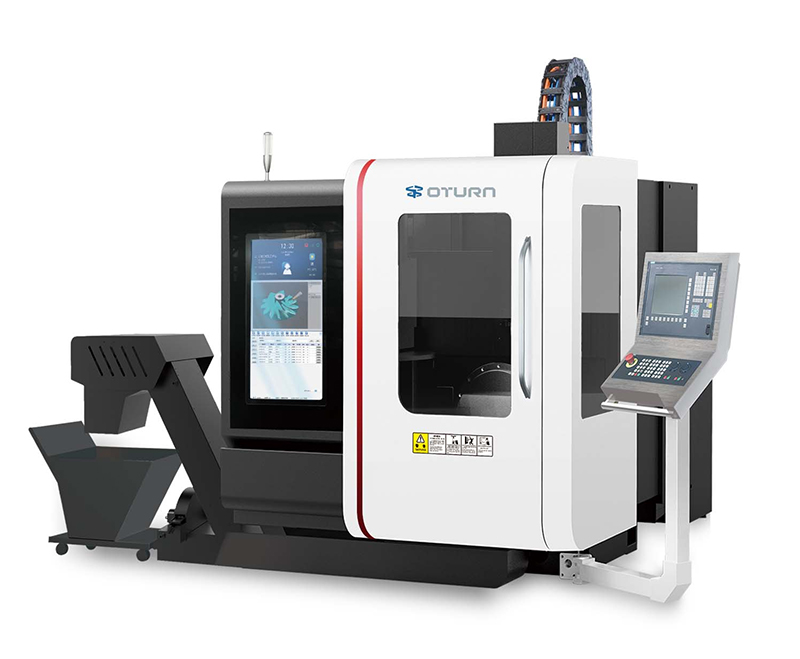

In an aviation engine manufacturing workshop in Chengdu, A 5-axis CNC vertical machining center is carving turbine blades with extremely fine precision. With its flexible movement in multiple degrees of freedom and high stability, it can achieve precise processing of complex workpieces and meet the stringent standards of aviation manufacturing. With a spindle speed of up to 24,000 revolutions per minute, coupled with an intelligent CNC system, it transforms titanium alloy blanks into critical components that meet aviation standards within four hours. This equipment, known as the “Space Sculptor,” integrates mechanical engineering, CNC technology, and materials science, continuously pushing the boundaries of manufacturing processing.
Technical Core: High-Precision Collaboration with 5-Axis Coordination
The five-axis vertical machining center utilizes the traditional X, Y, and Z axes, adding two rotary axes to enable multi-angle tool coordination, breaking the limitations of linear turning. Tool center point control technology maintains a positional accuracy of 0.001 mm during rotation, effectively preventing error accumulation. The advanced “double-swing head + cradle-type rotary table” structure can handle a wide range of workpiece diameters, ranging from 50 mm to 1.5 meters. The mineral casting bed enhances dynamic rigidity and reduces vibration during high-speed turning.
The intelligent control system integrates AI algorithms for adaptive optimization of machining parameters. In automotive transmission housing machining, AI adjusts feed speeds, increasing efficiency by 25% and extending tool life by 30%. Virtual debugging using digital twin technology shortens R&D cycles by 40% and increases fault warning accuracy to 90%.
Application Areas: Leading Manufacturing Innovation
Five-axis vertical machining centers are widely used in aerospace, new energy vehicles, medical devices, and mold manufacturing. In the C919 large aircraft project, 5-axis CNC machine tools handle over 70% of key parts machining, significantly improving precision and efficiency. Demand for five-axis CNC machine tools in the new energy vehicle sector has increased by 65%, with minimal lubrication technology significantly reducing turning fluid usage. Medical device machining utilizes nanometer-level positioning to achieve micron-level texture creation, enhancing the bond strength between implants and bone tissue.
Industrial Transformation: The Rise of Domestic Strength
Thanks to the “Made in China 2025″ strategy, the market share of domestic five-axis CNC systems has steadily increased, from 12% in 2020 to 38% in 2024. Domestic torque motor direct-drive rotary tables have broken the foreign monopoly, achieving arc-second positioning accuracy. China’s five-axis machine tool market is expected to reach 12 billion yuan in 2024, with domestically produced equipment accounting for over 50%. Numerous domestically produced five-axis machining equipment have entered the international aviation supplier ecosystem, helping the manufacturing industry achieve domestic substitution and upgrades.
Five-axis vertical machining centers are shaping the future of manufacturing for aerospace engine turbine blades, integrated new energy components, precision medical devices, and large molds. Their integration of intelligence and high precision makes them key equipment driving the high-quality development of modern manufacturing, injecting strong momentum into Made in China.
FAQ
What materials are suitable for machining 5-axis CNC vertical machining centers?
They are suitable for a variety of materials, including aluminum alloys, titanium alloys, stainless steel, and plastics, and are particularly well-suited for precision machining of complex and challenging parts.
What are the main advantages of 5-axis CNC machining centers?
They enable multi-angle, high-precision turning, reduce workpiece setup times, and improve machining efficiency and surface quality.
Is a 5-axis CNC machining center difficult to maintain?
The CNC machine’s complex structure requires regular calibration and maintenance, as well as lubrication and cleaning, to ensure long-term stable operation.
Is 5-axis CNC machining suitable for all machining scenarios?
Five-axis machining is suitable for complex surfaces and multi-angle turning, but is not suitable for simple parts or cost-sensitive machining.
