Gantry high-speed milling machine, as CNC machining equipment integrating high precision and high efficiency, have become indispensable in aerospace, automotive manufacturing, and mold production due to their outstanding performance and wide applications.
Structural Design and Machining Advantages
The gantry high-speed milling machine adopts a gantry-type structure composed of the bed, columns, crossbeam, worktable, spindle box, and other main components. This structure provides the machine with high rigidity and stability, effectively resisting vibrations and deformations during turning, ensuring machining accuracy and reliability. The workpiece is fixed on the worktable, and the spindle drives the tool to rotate at high speed. The CNC system precisely controls the movement of each axis to achieve high-precision machining of complex surfaces.
During high-speed milling, the spindle speed can reach tens of thousands of revolutions per minute, greatly enhancing turning speed and machining efficiency while achieving excellent surface quality. The stable worktable structure and wide machining range enable the processing of large workpieces with high stability.
Key Technological Breakthroughs
High-speed electric spindle technology is one of the cores of gantry high-speed milling machines. Modern high-speed electric spindles often use ceramic bearings or magnetic suspension bearings, with maximum speeds up to 30,000 rpm, maintaining good rigidity and precision, significantly improving machining efficiency and accuracy.
The high-precision CNC system has advanced control algorithms and high-performance processors, achieving nanometer-level precision control. Multi-axis simultaneous technology enables the machining of complex surfaces, meeting the high-precision demands of modern manufacturing.
Thermal deformation compensation technology uses real-time temperature monitoring and intelligent algorithms to compensate for thermal errors, effectively solving accuracy issues caused by temperature changes during high-speed machining and ensuring stable machining quality.
Improving Manufacturing Efficiency and Machining Quality
Gantry high-speed milling machines, combined with advanced CAM software, can plan and optimize tool paths, reduce idle travel time, and decrease tool wear, significantly improving machining efficiency. Multi-axis machining reduces tool changes and machining time, enhancing flexibility and efficiency for complex geometries.
By selecting high-precision CNC machine tools and turning tools, along with a comprehensive machining control system, gantry high-speed milling machines ensure that workpiece dimensions, shapes, and positional accuracy meet design requirements. Precise control of turning speed, feed rate, and turning depth further optimizes the machining process and improves surface quality.
Post-processing such as surface treatment, precision adjustment, and maintenance is also important to extend equipment life and ensure continuous performance.
Future Development Trends
With the advancement of Industry 4.0, gantry high-speed milling machines will develop toward intelligence, networking, and green manufacturing. Intelligent technologies will enable machines to self-learn and optimize parameters, improving machining efficiency and quality. Networking technologies will realize remote monitoring and intelligent maintenance, enhancing equipment reliability and lifespan. Green technologies will focus on energy saving and emission reduction, promoting sustainable manufacturing.
Conclusion

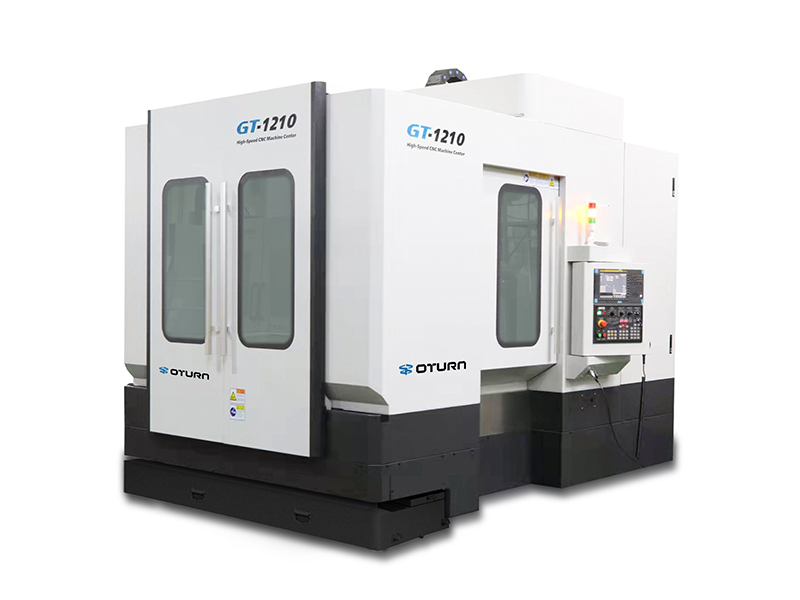

With its high-rigidity structure, advanced spindle technology, and intelligent CNC system, gantry high-speed CNC milling machine play an increasingly important role in modern manufacturing. The OTURN GT series high-speed CNC milling machines are specially designed for efficient and precise machining, particularly suitable for precision mold manufacturing and large aluminum alloy parts processing. They adopt a fixed-beam gantry structure equipped with a high-rigidity direct-drive mechanical spindle with a maximum speed of 12,000 rpm. The three-axis roller linear guideways and ball screw cooling system effectively control thermal deformation, improving machining accuracy and equipment lifespan. Multiple spindle options meet different machining needs, helping enterprises achieve efficient and stable precision machining.
