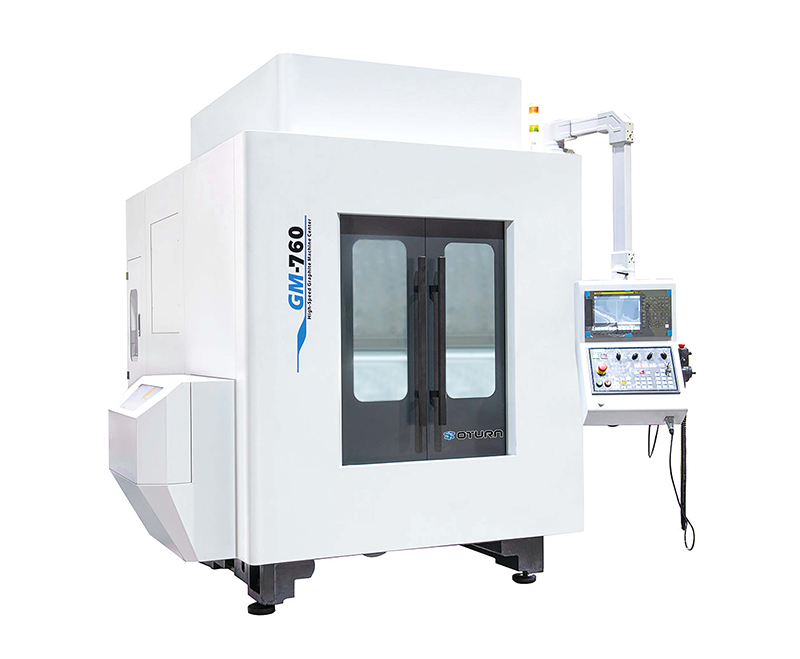

The GM Series High Speed CNC Machining Center redefines high-end material processing. You gain access to advanced machining capabilities tailored for challenging materials like graphite and ceramics. Its precision and reliability ensure consistent results while optimizing efficiency. Designed for industries demanding cutting-edge technology, this high-speed CNC machining center empowers you to tackle complex projects with confidence.
Key Takeaways
- The GM Series CNC Machine works well with tough materials like graphite and ceramics. It provides accurate and dependable results.
- Special features like fast spindles and automatic systems save time. This makes it perfect for industries needing quick production.
- The GM Series helps tools last longer and makes surfaces smoother compared to older methods.
High-End Material Processing Challenges
Unique Properties of Graphite and Ceramics
Graphite and ceramics possess unique physical and chemical properties that make them indispensable in high-end industries. However, these same properties also present significant challenges during machining. Graphite, known for its excellent thermal conductivity and low density, is highly brittle. This brittleness increases the risk of material chipping or cracking during machining. Similarly, ceramics are prized for their hardness, wear resistance, and chemical stability. Yet, their hardness and brittleness make them difficult to process using conventional methods.
The electrical properties of ceramics further complicate machining. Conductive ceramic composites, for instance, require specialized techniques to achieve precision. Research shows that a lower band gap in ceramics correlates with higher machinability, highlighting the intricate relationship between chemical properties and machining behavior. These factors demand advanced machining solutions capable of addressing the complexities of these materials.
| Challenge | Description |
|---|---|
| Carbon Contamination | Major issue during the preparation of transparent ceramics via spark plasma sintering (SPS). |
| Effect on Transparency | Investigates the impact of carbon inclusions and residual porosity on the transmittance of spinel ceramics. |
| Critical Inclusion Size | Identifies a critical size of carbon inclusions (around 100 nm) affecting transmittance. |
| Trends with Inclusion Size | Larger inclusions increase transmittance, while smaller inclusions maintain low transmittance. |
| Combination with Porosity | Carbon contamination with porosity results in complex trends affecting transparency. |
Limitations of Traditional Machining Methods
Traditional machining methods struggle to meet the demands of processing graphite and ceramics. These methods often result in excessive tool wear, poor surface finish, and low precision. For graphite, traditional tools fail to handle its abrasive nature effectively, leading to rapid tool degradation. In ceramics, the hardness and brittleness of the material cause frequent tool breakage and inconsistent results.
Modern high-speed CNC machining centers address these limitations by offering advanced capabilities. Studies comparing traditional methods with high-speed CNC machining reveal significant improvements in tool wear and surface roughness. For example, CNC machines with a maximum rotation speed of 42,000 rpm and a feed rate of 60,000 mm/min achieve superior surface quality. Additionally, optimized turning conditions and high-quality tools minimize wear and enhance precision.
- Direct Cost Efficiency Metrics: Assess labor productivity, material usage, and equipment utilization to identify waste and optimize resources.
- Indirect Cost Efficiency Metrics: Include overhead costs and administrative expenses, helping businesses streamline processes.
- Examples of Metrics: Labor productivity measures output per employee, material usage tracks raw materials per unit, and overhead costs as a percentage of revenue monitor indirect costs.
By leveraging a high-speed CNC machining center, you can overcome the challenges of traditional methods. These machines ensure precision, durability, and efficiency, making them ideal for machining graphite and ceramics.
Features of the GM Series High Speed CNC Machining Center
Precision and Stability
The GM Series High Speed CNC Machining Center delivers unmatched precision and stability, ensuring consistent results in high-end material processing. Its robust Meehanite cast iron structure minimizes vibration, enhancing machining accuracy. You benefit from a system that maintains measurement reliability across its operating range.
| Component | Description |
|---|---|
| Stability | Tracks normal random variation of measurements over time, identifying any drift or special causes. |
| Bias | Identifies systematic errors to validate measurement accuracy across the operating range. |
| Linearity | Assesses the accuracy of the measurement system throughout its range. |
| Gage Repeatability and Reproducibility (GR&R) | Evaluates random errors to confirm the precision of the measurement system. |
These features ensure that the GM Series maintains tight tolerances, even during prolonged operations. Whether you’re machining intricate graphite electrodes or ceramic components, the machine’s stability guarantees consistent quality.
Adaptability to Hard and Brittle Materials
Machining hard and brittle materials like ceramics and graphite requires specialized capabilities. The GM Series excels in this area by offering adjustable turning parameters that optimize performance. You can achieve ductile turning modes, minimizing surface damage and maintaining material integrity.
The transition from ductile to brittle turning modes in materials like silicon depends on precise control of turning parameters. The GM Series allows you to fine-tune these parameters, ensuring superior surface quality. This adaptability makes the machine ideal for industries where material properties demand advanced machining techniques.
Automation and Efficiency
Automation is a cornerstone of the GM Series High Speed CNC Machine Center. Its user-friendly design incorporates features like a large-capacity tool magazine and compatibility with automated electrode processing units. These elements streamline operations, reducing manual intervention and increasing productivity.
You gain access to a machine that supports high-speed spindle operations and forced cooling systems, ensuring thermal stability during extended machining cycles. The compact design optimizes workspace utilization, while the absolute coordinate feedback system enhances operational accuracy. These features collectively improve efficiency, enabling you to meet tight production schedules without compromising quality.
Industry Applications of the GM Series
Aerospace and Automotive Components
The GM Series plays a pivotal role in the aerospace and automotive sectors, where precision and durability are non-negotiable. You can rely on this high-speed CNC machining center to produce intricate components like turbine blades, engine parts, and structural elements. Its ability to handle hard and brittle materials ensures that even the most demanding aerospace alloys and ceramic composites are machined with exceptional accuracy.
In the automotive industry, the GM Series excels in manufacturing lightweight yet robust components. This capability supports the growing demand for fuel-efficient vehicles. The machine’s adaptability to complex geometries and tight tolerances makes it indispensable for creating parts like brake discs, cylinder heads, and electric vehicle components.
Electronics and Mold Manufacturing
The GM Series is a game-changer in electronics and mold manufacturing. Its high-speed spindle and thermal stability allow you to produce precision molds for semiconductors, connectors, and microelectronic components. These molds demand flawless surface finishes and exact dimensions, both of which the GM Series delivers consistently.
In electronics, the machine supports the production of graphite electrodes used in automated processing units. This capability enhances efficiency in industries like communications and consumer electronics. The GM Series also ensures that molds for plastic injection and die-casting meet the stringent requirements of modern manufacturing.
- Key Applications in Electronics and Mold Manufacturing:
- Semiconductor molds for microchips and processors.
- Graphite electrodes for automated production.
- Precision molds for plastic injection and die-casting.
Energy and Medical Device Production
The energy and medical sectors benefit immensely from the GM Series’ advanced capabilities. In energy production, you can use this machine to create components for superconducting devices, which account for over 29.7% of the global revenue share in this segment. These devices are critical for applications like quantum computing, space exploration, and particle accelerators.
In medical device production, the GM Series ensures the precision machining of ceramic and graphite components used in MRI machines, surgical tools, and implantable devices. Its ability to maintain tight tolerances and deliver superior surface finishes makes it ideal for producing life-saving equipment.
- Applications in Energy and Healthcare:
- Superconducting magnets for MRI machines.
- Ceramic components for surgical tools.
- Graphite parts for quantum computing and fusion reactors.
The GM Series High Speed CNC Gantry Machining Center empowers you to meet the exacting standards of these industries, ensuring reliability and efficiency in every application.
The GM Series CNC Machining Center revolutionizes high-end material processing with precision, versatility, and cost-efficiency. Its robust design and advanced features ensure exceptional performance across industries.
FAQ
What makes the GM Series CNC Machining Center suitable for graphite and ceramics?
The GM Series features a robust Meehanite cast iron structure, high-speed spindle, and forced cooling system. These ensure precision, stability, and adaptability for hard, brittle materials.
Can the GM Series handle automated production?
Yes, it supports automation with a large-capacity tool magazine and compatibility with automated electrode processing units. This reduces manual intervention and boosts productivity.
