Case Study: High-Speed CNC Milling Center in Automotive Parts Manufacturing

You gain measurable benefits by using a high-speed CNC milling machine in automotive parts manufacturing. You see production cycle times drop by up to 50% and material waste decrease by about 15%. Real-time monitoring and advanced quality inspection help you reach defect rates as low as 5%, while dimensional accuracy stays within tight tolerances.

Key Takeaways

• High-speed CNC milling machines dramatically boost automotive production by turning cycle times in half, reducing material waste, and ensuring precise, high-quality parts that meet strict industry standards.
• Choosing the right tools and monitoring machining processes in real time helps extend tool life, lower scrap rates, and maintain consistent part quality, leading to cost savings and smoother operations.
• Integrating automation, smart software, and continuous training empowers manufacturers to optimize efficiency, adapt quickly to new designs, and stay competitive in the fast-evolving automotive industry.

CNC Milling Machine Evolution in Automotive Manufacturing

Advancements from Conventional to High-Speed CNC Milling

You have witnessed a remarkable transformation in machining technology over the decades. The journey began in the 1940s when John T. Parsons introduced the concept of numerical control. By 1952, the first experimental CNC milling machine appeared, using punch tape to guide precise movements. As you look at the timeline below, you see how each milestone brought new capabilities to automotive manufacturing:

You now benefit from high-speed machining, which operates at turning speeds five to ten times faster than conventional methods. This leap in technology gives you higher productivity, lower energy consumption, and the ability to produce complex parts with sub-micron accuracy.

Meeting Automotive Industry Demands with Modern CNC Milling Machines

Modern CNC milling machines help you meet the ever-changing demands of automotive manufacturing. You can quickly adapt to new designs and materials without lengthy retooling. Automation and advanced programming let you maintain high throughput and consistent quality, even for complex geometries.

You also gain the advantage of statistical process control, which helps you detect variations early and keep defect rates low. Compliance with standards like ISO/TS 16949 and Six Sigma ensures your parts meet strict automotive requirements. With these machines, you can scale production from prototypes to large batches, all while reducing labor costs and minimizing errors.

Tip: Embrace automation and digital integration to boost efficiency and stay competitive in the fast-paced automotive sector.



Advantages of High-Speed CNC Milling Centers

Precision and Consistency in Automotive Parts

You demand precision and consistency in every automotive part you produce. High-speed CNC milling centers deliver these qualities through advanced calibration, real-time monitoring, and robust machine design. You benefit from:

• Regular calibration routines that keep dimensional accuracy at the micrometer level, which is essential for critical automotive components.
• In-process inspections using laser scanning and post-process checks with Coordinate Measuring Machines (CMMs) that confirm every part meets tight tolerances.
• Advanced tool holders, such as hydraulic and shrink-fit types, and stable machine foundations that minimize vibration and tool deflection.
• Integrated software that simulates and optimizes turning paths, providing real-time quality control and feedback to maintain precision.
• The ability to use 5-axis CNC machines, which reduces the need for multiple setups and allows you to machine complex shapes with higher accuracy.
• Production of high-performance parts, like custom engine pistons and connecting rods, that must withstand extreme pressures and temperatures.
• Continuous improvement through machinist feedback and empirical data, which helps you fine-tune speeds and feeds for micron-level precision.

Note: Consistent precision in your parts not only meets industry standards but also builds your reputation for quality and reliability.

Production Speed and Throughput Gains

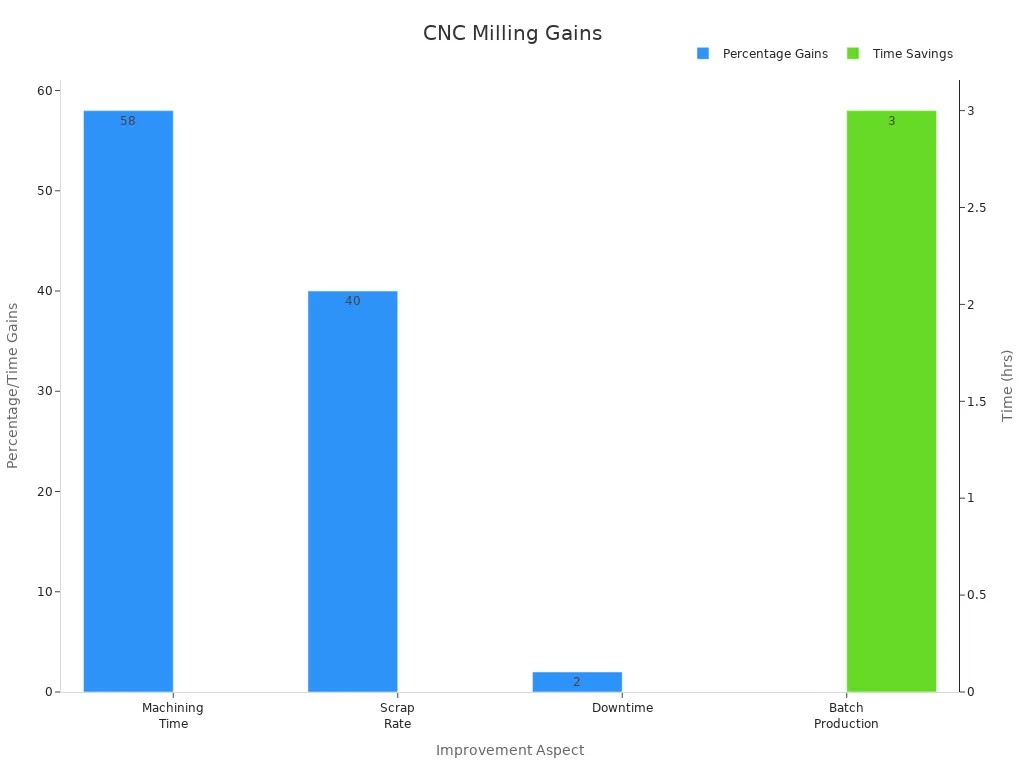

You see dramatic improvements in production speed and throughput when you implement high-speed CNC milling centers. The following table highlights documented gains:

You can run your machines around the clock with minimal downtime. Automatic tool changers and optimized toolpaths help you save hours on every batch. You also reduce scrap rates, which means less wasted material and more usable parts per run.

Superior Part Quality and Surface Finish

You achieve superior part quality and surface finish with high-speed CNC milling centers. These machines use high-speed spindles and advanced cooling systems to minimize thermal displacement. You get smoother surfaces and tighter tolerances, even on complex geometries. The robust structure of the machine absorbs vibrations, which prevents tool marks and ensures a flawless finish. You can confidently deliver parts that meet or exceed the strictest automotive standards.

Tip: Consistent surface finish not only improves the appearance of your parts but also enhances their performance and longevity.

Cost Efficiency and Resource Optimization

You gain significant cost efficiencies and optimize your resources by using high-speed CNC milling. Shorter production times and reduced waste lower your overall expenses. The precision and consistency of each CNC milling machine ensure that you produce uniform parts, which minimizes scrap and rejects. Automated operations reduce downtime and labor costs, allowing you to allocate your workforce more effectively.

You see real-world examples of these benefits in leading automotive companies. Tesla improved production efficiency and reduced lead times for complex components, streamlining their supply chain. Ford increased precision and lowered manufacturing costs for engine parts, making it possible to produce complex components that were previously too expensive or difficult.

• High precision and accuracy improve part quality and reliability.
• Automated operations minimize downtime and labor costs.
• Consistent production reduces waste and optimizes material usage.
• Flexible design capabilities support rapid prototyping and innovation.
• Despite initial setup costs, you reduce overall manufacturing expenses through waste reduction and operational efficiencies.
• Integration of AI and machine learning enables predictive maintenance and dynamic tool path optimization.
• Advancements in CNC technology support sustainable manufacturing by enhancing material efficiency and energy savings.

Note: Investing in high-speed CNC milling centers helps you recover costs faster and positions your business for long-term growth.



Real-World Case Study: High-Speed CNC Milling Machine Implementation

Project Scope and Objectives in Automotive Parts Production

You face increasing pressure to deliver high-quality automotive parts faster and at lower cost. In this case study, you set out to upgrade your production line with a high-speed CNC milling machine. Your main goals include improving part precision, reducing lead times, and turning overall manufacturing costs. You also want to handle new materials and complex part geometries that traditional machines struggle with. The project covers the full process, from machine selection and installation to operator training and process optimization.

You choose a high-speed CNC milling machine to tackle these challenges. You focus on machining difficult materials, such as polymer concrete, which require advanced tooling and careful process control. Your objectives include:

• Achieving tighter tolerances for critical engine and chassis components.
• Reducing cycle times for both small and large batch production.
• Lowering scrap rates and tool replacement costs.
• Ensuring consistent surface finish and part quality.

Quantifiable Results: Quality, Lead Time, and Cost Reduction

After implementing the new CNC milling machine, you see measurable improvements across your production line. You track key performance indicators to evaluate the impact. The following table summarizes important findings from your practical application, especially when machining challenging materials:

You notice that cemented carbide end mills with advanced coatings last much longer than high-speed steel tools. This reduces tool change frequency and keeps your production line running smoothly. You also find that monitoring turning forces helps you predict tool wear and maintain part quality. By optimizing machining parameters, you achieve better surface finishes and extend tool life.

You record a drop in lead times by up to 40%. Scrap rates fall as you maintain tighter tolerances and reduce tool-related defects. Your overall production costs decrease, thanks to fewer tool replacements and less wasted material.

Key Takeaways from Practical Application

You gain several important lessons from this project. First, tool selection plays a major role in machining performance, especially with tough materials. Cemented carbide cutters with specialized coatings offer the best durability and surface finish. Second, real-time monitoring of turning forces gives you early warning of tool wear, helping you avoid defects and unplanned downtime.

You also learn that optimizing machining parameters is essential. Small changes in speed, feed, or depth of cut can make a big difference in tool life and part quality. While turning force sensors provide valuable data, you find that their size and cost can limit their use in some industrial settings.

Tip: Invest in high-quality tooling and process monitoring to maximize the benefits of your CNC milling machine. Regularly review your machining parameters to keep your production line efficient and your parts within spec.

You see that a high-speed CNC milling machine not only boosts productivity but also helps you meet the strict demands of the automotive industry. By applying these lessons, you position your operation for long-term success and continuous improvement.

Implementing High-Speed CNC Milling Machines

Selecting the Optimal CNC Milling Machine for Automotive Applications

You need to choose a CNC milling machine that matches the demands of automotive manufacturing. Precision and repeatability matter most, especially when you work with tolerances as tight as ±0.001 inches. Multi-axis capabilities let you create complex parts quickly and with high consistency. You should also look for machines that handle exotic materials like titanium or specialized alloys. Inspection equipment, such as Coordinate Measuring Machines (CMMs), helps you verify that every part meets strict automotive standards. When you select advanced equipment, you improve both quality and efficiency in your production line.

Programming and Process Optimization Strategies

You can boost your productivity by using smart programming and process optimization. Efficient CNC programs with dynamic toolpaths help you increase turning speed and feed rate. AI-enhanced CAM software, such as CAM Assist, reduces programming time by up to 80%. Predictive maintenance, powered by sensor data and machine learning, extends tool life and lowers the risk of breakdowns. Automation features, like automatic tool changers, minimize tool change cycle times. The table below shows key metrics you can improve with these strategies:

Tip: Train your operators on new software and automation tools to maximize these gains.

Integrating CNC Milling Machines into Existing Production Lines

You can integrate a new CNC milling machine into your current production line by planning carefully. Assess your workflow and identify where automation and digital monitoring will add the most value. Connect your machines to your factory’s data systems for real-time tracking and quality control. Use robotic integration for material handling to further reduce manual labor. With the right approach, you achieve seamless production and consistent part quality.

Addressing Challenges in High-Speed CNC Milling Adoption

Investment and Return on Investment Considerations

You face significant investment decisions when adopting high-speed CNC milling technology. The initial cost of new equipment and IoT integration can seem high. You must also balance capital expenditures with the need for accurate, real-time data to maximize efficiency. The table below highlights common challenges and measurable ROI statistics:

You can realize strong returns by focusing on predictive maintenance and quality control. Data-driven decisions help you recover your investment faster and support long-term growth.

Workforce Training and Skill Development for CNC Milling Machines

You need a skilled workforce to operate and maintain advanced milling centers. Training programs help your team learn new software, automation tools, and digital monitoring systems. You should encourage ongoing education to keep up with evolving technology. When your operators understand both the hardware and software, you reduce errors and downtime. Cross-training also builds flexibility, allowing your staff to adapt quickly to production changes.

Tip: Invest in hands-on training and certification programs to boost operator confidence and machine uptime.

Data Flow and Digital Integration in Automotive Manufacturing

You benefit from seamless data flow and digital integration in your manufacturing process. Integrated CAM/CNC systems reduce issue resolution time and improve part quality. Automatic feedback loops optimize processes without constant human intervention. The following points illustrate improvements in digital manufacturing:

• Integrated CAM/CNC systems enable automatic process optimization and reduce manual steps.
• Hierarchical integration of CAM, CNC, MES, and ERP systems supports better data flow and production planning.
• MTConnect system architecture allows near-real-time process data collection and feedback.
• Standards like MTConnect and STEP-NC enable smarter, feedback-enabled CNC operations.

You see faster problem-solving, higher part quality, and more efficient production planning. Digital integration helps you stay competitive in the fast-paced automotive industry.

Best Practices for CNC Milling Machine Operation

Maintenance and Longevity of CNC Milling Machines

You extend the life of your machines by following a structured maintenance plan. Regular inspections, lubrication, and coolant system checks keep your equipment running smoothly. You also focus on tool and spindle care, axis calibration, and electrical system checks. Operator training ensures everyone understands how to spot early warning signs of wear or malfunction.

• Preventive maintenance includes time-based, usage-based, and condition-based tasks.
• Predictive maintenance uses data and AI to forecast part failures before they happen.
• Computerized Maintenance Management Systems (CMMS) help you track and analyze maintenance data.
• You benefit from reduced tool breakage and scrap, as shown in the BC Machining case study.
• Continuous operator training and software updates support long-term performance.

By combining these strategies, you maximize uptime and reduce unexpected breakdowns.

Continuous Improvement and Performance Monitoring

You achieve better results by monitoring your machines in real time. You track tool wear, vibration, and turning efficiency to maintain tight tolerances. Production counts help you ensure consistent output. When you collect and analyze data, you find the root causes of defects and improve quality control.

1. You reduce downtime by 30% with optimized preventive maintenance.
2. You increase Overall Equipment Effectiveness (OEE) by 15% through better performance management.
3. You decrease raw material waste by adjusting machining parameters.

Tip: Use real-time monitoring and data analysis to drive continuous improvement and keep your operation competitive.



Future Trends in CNC Milling Machine Technology for Automotive

Automation and Smart Manufacturing Integration

You see automation and smart manufacturing changing the way you produce automotive parts. Industry 4.0 technologies, such as AI, machine learning, and IoT, now play a major role in your daily operations. These tools help you predict maintenance needs and optimize your processes. Robotic arms handle materials and inspect parts, which boosts both productivity and safety.

Smart CNC machines, equipped with sensors and connected to cloud-based software, give you real-time data. This data helps you monitor equipment effectiveness and make quick decisions. You also benefit from hybrid machining, which combines additive and subtractive processes for complex parts. The following list highlights current trends:

• AI and machine learning enable predictive maintenance and process optimization.
• Robotic automation improves accuracy and reduces manual labor.
• Multi-axis and hybrid machining support complex automotive part production.
• Cloud-based software allows remote monitoring and control.
• Integration with additive manufacturing expands design possibilities.

Note: These trends help you stay competitive and meet the growing demands of the automotive industry.

Innovations in Materials and CNC Milling Machine Capabilities

You now work with a wider range of materials than ever before. Advanced machines let you cut graphite, carbon fiber, ceramics, and other composites with high precision. These materials help you create lighter, stronger, and more efficient automotive parts.

Modern machines feature robust structures that resist vibration and thermal changes. High-speed spindles and advanced cooling systems keep your parts accurate and surfaces smooth. You also see improvements in tool design, which extends tool life and reduces downtime.

• You can machine complex shapes with fewer setups.
• Absolute coordinate feedback systems ensure precise results.
• Large-capacity tool magazines support longer, uninterrupted runs.
• Compatibility with automated electrode processing units increases flexibility.

Tip: Stay updated on new materials and machine features to keep your production line at the turning edge.

You see high-speed milling centers reshape automotive manufacturing. These machines deliver unmatched precision, faster cycles, and significant cost savings. Key performance metrics include:

Embrace these advancements to boost your competitiveness and drive innovation in the automotive industry.



FAQ

What materials can you machine with high-speed CNC milling centers?

You can machine metals, graphite, carbon fiber, ceramics, and composites. These machines handle tough materials while maintaining high precision and excellent surface finish.

How does high-speed CNC milling improve automotive part quality?

You achieve tighter tolerances and smoother surfaces. Advanced monitoring systems help you detect errors early, ensuring every part meets strict automotive standards.

What maintenance does a high-speed CNC milling machine require?

You should perform regular inspections, lubrication, and calibration. Predictive maintenance tools help you prevent unexpected breakdowns and extend your machine’s lifespan.
