Advantages of 5-Axis CNC Machining Centers for Complex Parts

5 Axis CNC Machining Centers offer significant advantages for manufacturing complex parts. These 5 Axis CNC Machines enhance precision, allowing manufacturers to achieve tight tolerances and consistent quality. Efficiency remains paramount in modern manufacturing. The ability to reduce setups and achieve intricate geometries in a single setup boosts productivity. Versatility also plays a crucial role, as these CNC Machining Centers adapt to various materials and designs. Recent reports indicate that high precision 5 Axis Machines lead to reduced material waste and errors, ensuring high-quality outputs essential for competitive standards. Whether utilizing a 5 Axis CNC Vertical Machining Center or a 5 Axis CNC Horizontal Machining Center, manufacturers can optimize their processes for superior results.

Key Takeaways

• 5-axis CNC machining centers enhance precision by achieving tight tolerances, reducing setup errors, and improving accuracy for complex parts.
• These machines streamline production by minimizing setup times, allowing for faster cycles and fewer tool changes, which boosts overall efficiency.
• 5-axis CNC machining offers versatility, enabling manufacturers to work with various materials and perform multiple functions in a single setup.
• Investing in 5-axis CNC technology leads to long-term savings through reduced production time, higher part quality, and less material waste.
• Embracing 5-axis CNC machining can significantly improve competitiveness in industries like aerospace, automotive, and medical devices.

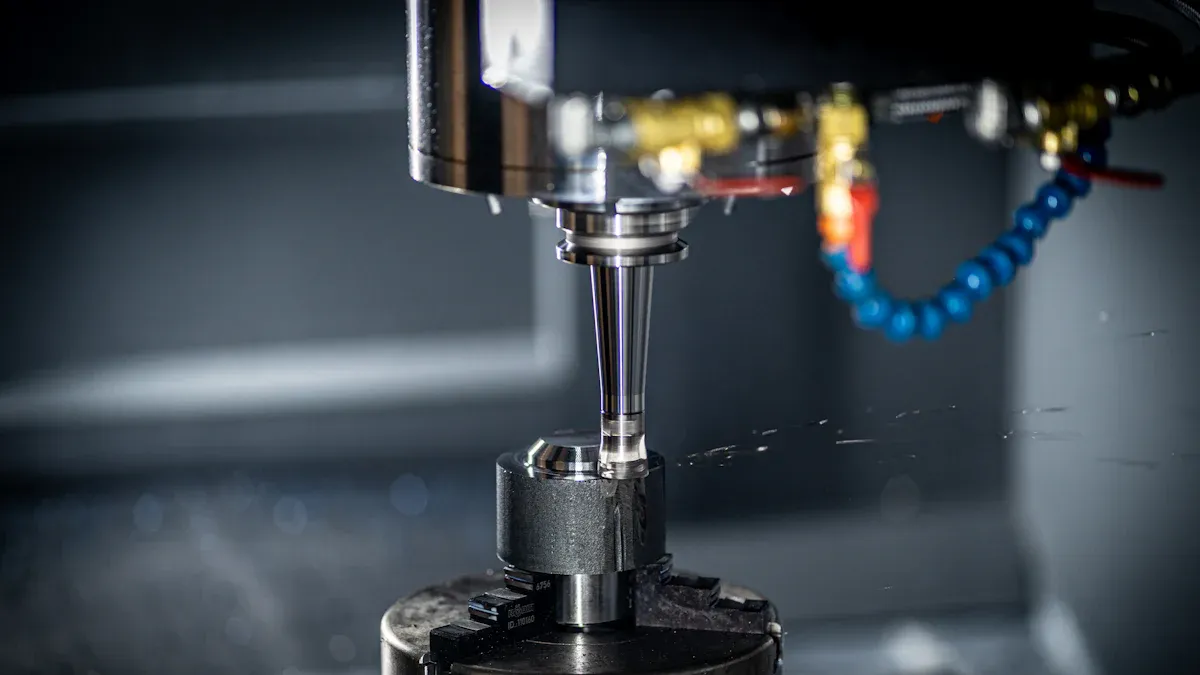

Enhanced Precision of 5-Axis CNC Machining Centers

Tight Tolerances

5-axis CNC machining centers excel in achieving tight tolerances, a critical requirement in many industries. These machines reduce setup counts, which minimizes misalignment and human error. As a result, manufacturers experience better accuracy and repeatability, especially for parts with strict tolerance requirements. The single-setup advantage of 5-axis machining helps avoid geometric mismatches that can occur with multiple setups in 3-axis machining.

Unlike traditional 3-axis machines that operate along X, Y, and Z coordinates, 5-axis machines incorporate two additional rotational axes. This advancement allows for tool access from virtually any angle in a single setup. Consequently, this capability enhances precision and significantly reduces production time for complex parts. The multi-directional movement of 5-axis CNC machines ensures continuous tool engagement with the workpiece, maintaining consistent cutting parameters. This feature minimizes errors associated with part realignment, resulting in consistently higher tolerances.

Consistent Quality

The consistent quality of parts produced by 5-axis CNC machining centers is another significant advantage. A variety of industries have reported success stories demonstrating the reliability of these machines. For instance, in the medical field, a diagnostic device required an internal component with ultra-fine surface finish and micron-level precision. The part arrived with specified surface roughness and dimensional accuracy, streamlining assembly. Similarly, an automotive manufacturer faced challenges with engine components failing under thermal loads. The 5-axis machining process delivered exceptional material integrity, extending component lifespan and reducing downtime.

Quality control metrics play a vital role in ensuring the output from 5-axis CNC machining centers meets industry standards. Key metrics include machine calibration, material inspection, and in-process inspection. Regular checks during machining catch issues early, using tools like coordinate measuring machines (CMMs) and optical comparators. Final inspections ensure all specifications and quality standards are met, while traceability maintains records of materials and processes for accountability.

Reduced Setup Time with 5-Axis CNC Machining Centers

Fewer Tool Changes

5-axis CNC machining centers significantly reduce the number of tool changes required during production. Traditional 3-axis machining often necessitates multiple setups, which can introduce non-productive time. Each repositioning requires manual intervention, increasing the risk of positioning errors. In contrast, 5-axis machines allow for a single mounting of the workpiece. This capability streamlines the process, leading to faster production cycles.

• Fewer tool changes lead to:
  • Reduced setup times, minimizing idle time during production.
  • Continuous machining without repositioning, which enhances accuracy.
  • Elimination of errors from re-fixturing, common in multiple setups.

For instance, a part that requires machining on five faces can be completed in one cycle. This eliminates the need for multiple setups and teardowns. A 5-axis machine can reduce the setup time for such a part from 2.5 hours (five setups at 30 minutes each) to just 30 minutes for a single setup. This results in a total time savings of 200 hours for a production run of 100 parts.

Streamlined Processes

The streamlined processes enabled by 5-axis CNC machining centers further enhance efficiency. The ‘done-in-one’ concept eliminates the need for multiple setups, reducing floor-to-floor time and increasing throughput.

By minimizing the number of setups and optimizing tool engagement, 5-axis CNC machining centers drastically reduce production time. This efficiency not only lowers labor costs but also enhances overall productivity.

Improved Surface Finish from 5-Axis CNC Machining Centers

Advanced Tooling Techniques

5-axis CNC machining centers utilize advanced tooling techniques that significantly enhance surface finishes. These techniques include:

• Guiding Curves: These follow the surface topography, resulting in smoother tool paths and improved surface finishes.
• 3-to-5 Axis Tilt: This feature allows real-time adjustments to the tool vector, reducing vibration and enhancing surface quality.
• Multi-Axis Adaptive Roughing: This technique maintains a constant cutting force, promoting smoother cutting and increased productivity.
• Curvature Matching: Aligning the tool’s curvature with the workpiece minimizes engagement issues and surface imperfections.
• Spatial Optimization: Algorithms reduce non-productive movements, ensuring efficient and safe tool paths.

The combination of these techniques allows for better tool engagement. The use of shorter, more rigid tools leads to cleaner cuts and superior surface quality. Techniques like flank milling eliminate cusp marks, reducing the need for secondary finishing operations. The optimized tool angle enables smooth surfaces in a single pass, often negating the need for labor-intensive processes like grinding or hand polishing.

Reduced Post-Processing

Reduced post-processing time translates into significant cost savings for manufacturers using 5-axis CNC machining centers. The reduction in setup requirements leads to time savings, fundamentally altering the cost structure of producing complex parts.

• Utilizing software to optimize tool paths minimizes non-cutting movements and maximizes material utilization, leading to further cost savings.
• Faster production with greater accuracy reduces the number of errors, leading to less time spent on inspection and rework.

By achieving superior surface finishes directly from the machining process, manufacturers can streamline their operations. This efficiency not only enhances productivity but also contributes to a more favorable bottom line.

Increased Versatility of 5-Axis CNC Machining Centers

Multi-Axis Capabilities

The multi-axis capabilities of 5-axis CNC machining centers significantly enhance their versatility in manufacturing complex parts. These machines can perform multiple functions, such as milling and turning, within a single setup. This capability reduces the need for multiple machines and setups, streamlining production processes.

The following table highlights key features of multi-axis capabilities:

These features allow manufacturers to create intricate geometries that would be challenging or impossible with traditional 3-axis machines. Industries such as aerospace and medical benefit greatly from this versatility, as they often require components with complex shapes and tight tolerances.

Adaptability to Various Materials

5-axis CNC machining centers excel in adapting to a wide range of materials, making them invaluable in various industries. These machines can efficiently process both lightweight and durable materials, ensuring optimal performance across different applications.

• 5-axis CNC machines can efficiently process lightweight metals like aluminum and magnesium for aerospace applications.
• They handle durable steels for automotive and industrial parts.
• High-strength, heat-resistant alloys like titanium and Inconel are used in medical and energy sectors.
• The machines also work with thermoplastics such as ABS, nylon, and PEEK for prototypes or lightweight components.
• Composites like carbon fiber and fiberglass are machined for high-strength, lightweight applications in automotive and sports industries.

This adaptability allows manufacturers to maintain high productivity levels while ensuring that they can meet the specific requirements of each project. For instance, the ability to machine advanced materials like titanium and cobalt-chrome alloys is crucial in the medical field, where precision and material integrity are paramount.

Cost-Effectiveness of 5-Axis CNC Machining Centers

Long-Term Savings

Investing in a 5-axis CNC machining center yields substantial long-term savings for manufacturers. These machines enhance productivity by allowing for the production of complex parts that often command higher market values. The efficiency of 5-axis machining reduces production time, enabling faster job completion and increased overall output.

Manufacturers have reported significant annual cost savings after switching to 5-axis CNC machining centers. For example, a typical manufacturer might save around $120,000 annually with a total investment of $300,000. This results in a return on investment (ROI) of 40% and a payback period of just 2.5 years. Key contributors to these savings include:

• Significant reduction in production time
• Higher market value for complex parts
• Superior part quality leading to less scrap and rework
• Increased overall output and competitive edge

Reduced Waste

5-axis CNC machining centers also contribute to reduced waste, which is crucial for cost management. The single-setup capability minimizes errors, leading to a significant reduction in scrap material. This efficiency allows manufacturers to utilize raw materials more effectively, achieving near-net-shape machining.

The following table illustrates the impact of 5-axis machining on waste reduction:

By adopting 5-axis CNC machining centers, manufacturers can lower labor costs due to reduced manual intervention by up to 70%. This technology not only enhances productivity but also supports sustainable practices by minimizing waste and maximizing resource utilization.

5-axis CNC machining centers offer numerous advantages that significantly enhance manufacturing processes. Key benefits include minimized setup times, the ability to create complex designs, and improved rotational accuracy. These machines also facilitate faster material removal and yield better surface finishes.

Manufacturers should consider adopting this technology to meet the growing demand for high-precision components in industries such as aerospace, automotive, and medical devices. Embracing 5-axis CNC machining can lead to increased efficiency and competitiveness in today’s advanced manufacturing landscape.

FAQ

What is a 5-axis CNC machining center?

A 5-axis CNC machining center allows tools to move along five different axes simultaneously. This capability enables the machining of complex geometries in a single setup, improving precision and reducing production time.

How does 5-axis machining improve efficiency?

5-axis machining reduces the number of setups required for complex parts. This efficiency minimizes idle time and errors, leading to faster production cycles and increased overall output.

What industries benefit from 5-axis CNC machining?

Industries such as aerospace, automotive, and medical devices benefit significantly from 5-axis CNC machining. These sectors require high precision and the ability to manufacture intricate components efficiently.

Are 5-axis CNC machines more expensive than 3-axis machines?

Yes, 5-axis CNC machines typically have a higher initial cost than 3-axis machines. However, their efficiency and reduced production times often lead to long-term savings that justify the investment.

Can 5-axis CNC machining handle various materials?

Absolutely! 5-axis CNC machining centers can process a wide range of materials, including metals, plastics, and composites. This versatility makes them suitable for diverse applications across multiple industries.
