5-axis CNC vertical high-speed machining solution for automotive aluminum molds

You achieve unmatched precision and efficiency when you use a 5-axis vertical high-speed machining center for automotive aluminum molds. Production time drops by up to 35%, and dimensional accuracy improves by 30%.

• Automotive manufacturers now lead global adoption, driven by the need for complex, lightweight, and high-quality mold designs.

Key Takeaways

• Using a 5-axis vertical high-speed machining center cuts production time by up to 35% and improves mold accuracy by 30%, helping you make complex automotive molds faster and better.
• This technology lets you machine multiple sides in one setup, reducing errors and the need for manual finishing, which saves time and lowers costs.
• Automation features like tool changers and pallet systems boost productivity and ensure consistent quality, letting your shop run efficiently even without constant supervision.

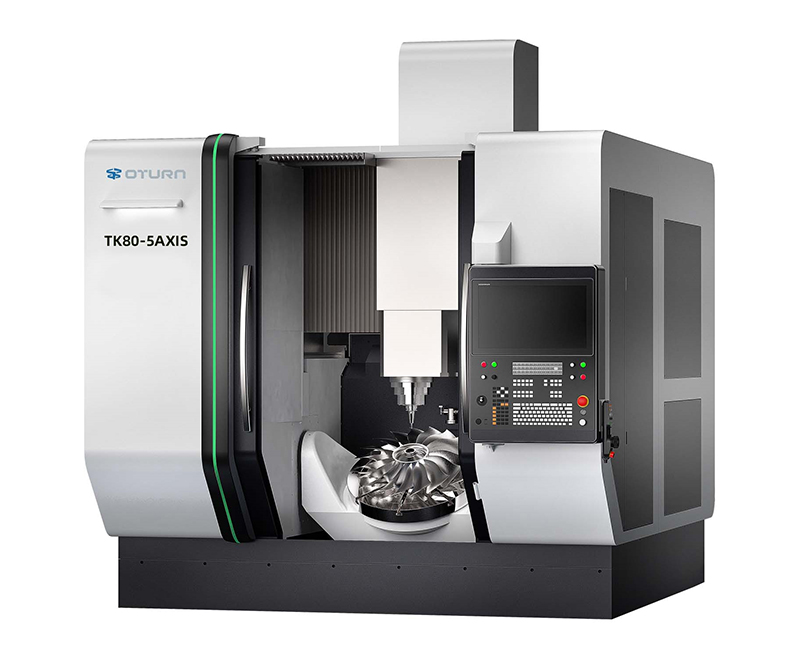

5-Axis Vertical High-Speed Machining Center: The Superior Choice

How 5-Axis Machining Works for Automotive Aluminum Molds

You gain a significant advantage when you use a 5-axis vertical high-speed machining center for automotive aluminum molds. This technology synchronizes movement along five axes—X, Y, Z, plus A or B and C rotary axes. You can tilt and rotate the tool or workpiece, reaching complex shapes and undercuts in a single setup. This dynamic control eliminates the need for repositioning, which saves time and improves accuracy.

Tip: Using shorter, stiffer tools with 5-axis machining reduces vibration, allowing you to achieve smoother surfaces and faster turning speeds.

The mechanical principles behind this process ensure you maintain high precision and efficiency. Here is a breakdown of the key features:

You can machine intricate features, such as deep cavities and sharp corners, without multiple setups. This capability leads to higher mold accuracy and a superior surface finish. Advanced motion control software maintains programmed feed rates, even during abrupt directional changes, ensuring precise toolpath execution. You also benefit from collision prevention systems, which simulate full setups and protect your tools and workpieces.

Advantages Over Traditional Machining Methods

When you compare a 5-axis vertical high-speed machining center to traditional 3-axis or 4-axis CNC machines, you see clear benefits in productivity, quality, and cost savings. You reduce the number of setups required for each mold. For example, you can cut the setups from six or seven down to just two, saving hours on each project and minimizing errors caused by repositioning.

• Faster Cycle Times: You achieve up to 30-40% faster material removal rates and reduce mold production time by as much as 50%.
• Higher Precision and Fewer Defects: You minimize defects by machining multiple sides in a single setup. This approach reduces manual adjustments and eliminates errors from flipping or transferring the workpiece. You also avoid rib-like textures and achieve a smoother finish, which means less manual cleaning and rework.
• Improved Environmental Impact: You use less energy per part because of faster machining cycles and fewer secondary processes. Precision turning reduces material waste, and extended tool life means less tooling waste. You often eliminate the need for additional finishing steps, saving resources and reducing environmental hazards.
• Superior Output Quality: You reach surface finish values as low as 0.4–0.8 µm and maintain tight dimensional tolerances (±0.02 mm), meeting the strict requirements of automotive mold production.

Note: Automotive manufacturers have reported a 10-15% increase in production capacity and two to three times faster production speeds after adopting 5-axis vertical high-speed machining centers.

You also see a strong return on investment. Although the initial cost is higher, you recover your investment quickly through increased production capacity, reduced scrap rates, and labor savings. You can expect a payback period as short as 14 months.

Key Benefits and Technologies for Automotive Aluminum Molds

Enhanced Precision, Surface Finish, and Design Flexibility

You achieve a new level of precision and surface quality when you use a 5-axis vertical high-speed machining center for automotive aluminum molds. This technology allows you to tilt and rotate the tool, which means you can reach complex angles and contours in a single setup. You no longer need to reposition the workpiece multiple times, so you reduce the risk of errors and improve dimensional accuracy.

A Canadian mold shop saw dramatic improvements after switching to this approach. They reported smoother tool paths, better contour fidelity, and higher metal removal rates. The advanced control software and high-speed spindles helped them achieve superior surface finishes and tighter tolerances. You can expect similar results, with enhanced accuracy and reduced need for secondary finishing.

When you use 5-axis machining, you can create intricate mold features that were once impossible or required extensive manual work. This flexibility lets you respond quickly to new automotive design trends and customer demands.

The following table shows how quality metrics improve after adopting this technology:

Essential Features: High-Speed Spindles, Advanced Controls, and Automation

You rely on several advanced features to get the most out of your 5-axis vertical high-speed machining center. High-speed spindles play a critical role. These spindles reach speeds up to 18,000 rpm and use NSK original bearings for stability. Pre-tensioning treatments prevent thermal changes, so you maintain accuracy even during long production runs. The 3+2 spindle mode supports multi-part machining, which is essential for automotive aluminum molds.

Advanced control systems make your job easier and more reliable. User-friendly interfaces and powerful software streamline programming and toolpath creation. You can integrate CAD/CAM software directly, which reduces setup times and programming errors. Modern CNC controls let you make quick adjustments, improving both precision and repeatability.

• You benefit from features like:
  • Automated tool changers and pallet systems that reduce manual intervention.
  • Simulation and verification software that prevents collisions and errors before machining starts.
  • Tool-detection systems that monitor wear and breakage, so you avoid unexpected downtime.
  • Intelligent operating software that optimizes performance and ensures safe, reliable operation.

Automation takes your productivity to the next level. With lights-out manufacturing, your machines run unattended, increasing throughput and efficiency. Automated pallet pools and multi-tool setups simplify the handling of large, complex molds. You spend less time on manual tasks and more time delivering high-quality results.

Tip: Automation not only boosts your output but also ensures consistent quality, even during long production runs.

Real-World Results: Productivity, Quality, and Cost Savings

You see measurable gains when you implement a 5-axis vertical high-speed machining center in your automotive mold production. One automotive manufacturer reduced rough machining time for an aluminum mold by 40%, turning the process from 10 hours to just 6 hours. An aerospace customer achieved a 30% reduction in overall production costs using similar technology.

You also notice significant improvements in quality. Shops report enhanced precision, smoother surfaces, and longer tool life. For example, after adopting high-speed spindles and advanced controls, a Canadian mold shop reduced finishing cycle times by 44% and increased metal removal rates by up to 50%. They also minimized the need for secondary finishing, which saves both time and money.

• Key benefits you can expect:
  • Faster cycle times and higher throughput
  • Superior surface finish and dimensional accuracy
  • Lower tool and production costs
  • Reduced manual labor and fewer errors
  • Greater flexibility to handle complex mold designs

By investing in a 5-axis vertical high-speed machining center, you position your business for long-term success in the competitive automotive industry.

You gain a clear edge by adopting a 5-axis CNC vertical machining center. You reduce setup and machining time, boost productivity, and achieve tighter tolerances. Enhanced design flexibility and surface quality help you stay ahead in automotive manufacturing.

FAQ

What materials can you machine with a 5-axis vertical high-speed machining center?

You can machine aluminum, graphite, carbon fiber, and ceramics. This flexibility helps you handle a wide range of automotive mold applications.

How does 5-axis machining improve mold quality?

You achieve tighter tolerances and smoother surfaces. The technology reduces manual finishing and ensures consistent results on complex mold shapes.

Can you automate production with these machining centers?

Yes, you can add automation features like tool changers and pallet systems. Automation increases productivity and reduces manual labor in your mold shop.
