CNC Gear Hobbing Machine

Introduction:

In gear manufacturing, the technology of high-speed dry gear hobbing machine improves the quality of workpiece and environmental protection, and greatly reduces the cutting time and manufacturing cost.


Product Detail

Product Tags

Machine Features

In gear manufacturing, the technology of high-speed dry gear hobbing machine improves the quality of workpiece and environmental protection, and greatly reduces the cutting time and manufacturing cost. YS3120 CNC gear hobbing machine is a new generation of CNC high-speed dry gear hobbing machine, which is the latest generation of dry cutting products, which is designed and developed for dry gear hobbing processing.
The machine tool is a 7 axis, 4 linkage environmental protection CNC hobbing machine, which represents the development trend of environmental protection, automation, flexibility, high speed and high efficiency of the world manufacturing industry, and embodies the design concept of people-oriented and green manufacturing. Especially suitable for automobile, car gearbox gear and other large quantities, high precision ultra dry gear hobbing.

Specification

Item

Unit

YS3115

YS3118

YS3120

Max workpiece diameter

mm

160

180

210

Max workpiece modulus

mm

3

4

Slide travel (Z axis displacement)

mm

350

300

Max turning angle of tool post

°

±45

Speed range of hob spindle (B axis)

Rpm

3000

Hob spindle power (electric spindle)

kW

12.5

22

Max speed of table (C axis)

Rpm

500

400

480

X axis rapid movement speed

Mm/min

8000

Y axis rapid movement speed

Mm/min

1000

4000

Z axis rapid movement speed

Mm/min

10000

4000

Max tool size (diameter×length)

mm

100x90

110x130

130x230

Main machine weight

T

5

8

13

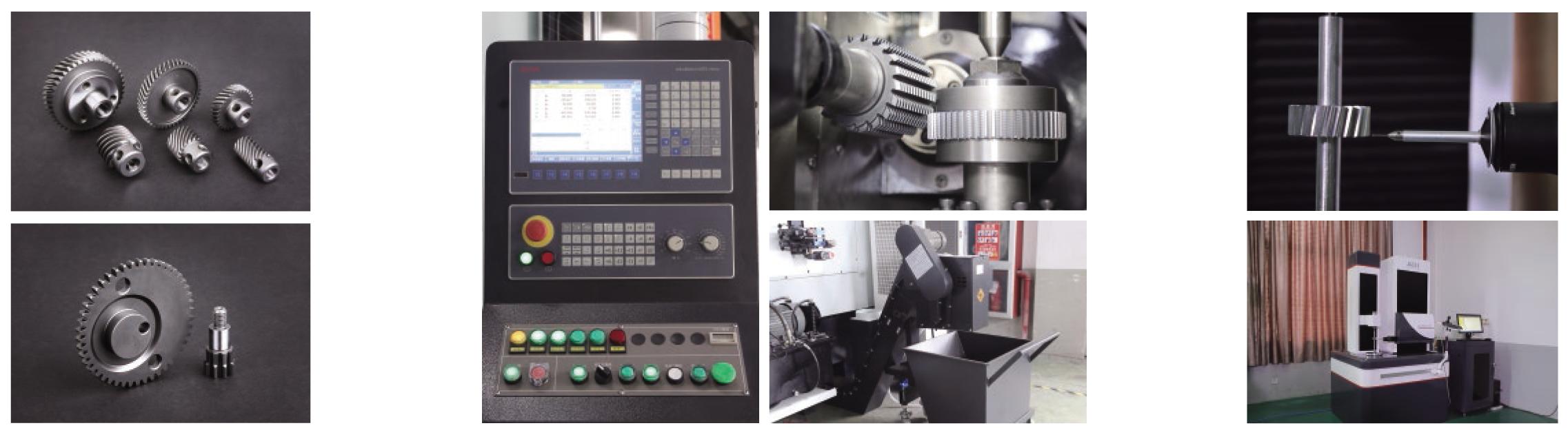

Detail Pictures
